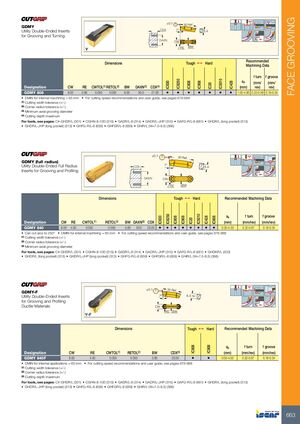

Токарные инструменты Iscar (часть 1) 2026 - страница 665

FACE GROOVING ±0.1 30 Ref. GDMY Utility Double-Ended Inserts CDX 7° 6.4 for Grooving and Turning DAXN CW RE BW Recommended Dimensions Tough 1 Hard Machining Data f turn f groove ap IC8250 IC5010 (mm/ (mm/ IC830 IC808 IC908 IC428 IC20 Designation CW RE CWTOL(1) RETOL(2) BW DAXN(3) CDX(4) (mm) rev) rev) GDMY 808 8.00 0.80 0.050 0.050 6.00 50.0 27.00 • • • • • • • 1.00-4.80 0.32-0.56 0.18-0.34 • DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 676-688 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum axial grooving diameter (4) Cutting depth maximum For tools, see pages: C#-GHDR/L (301) • CGHN-8-10D (315) • GADR/L-8 (314) • GADR/L-JHP (315) • GAFG-R/L-8 (661) • GHDR/L (long pocket) (313) • GHDR/L-JHP (long pocket) (313) • GHFG-R/L-8 (659) • GHFGR/L-8 (659) • GHIR/L (W=7.0-8.3) (398) ±0.1 30 Ref. GDMY (full radius) Utility Double-Ended Full Radius 7° CDX 6.4 Inserts for Grooving and Profiling DAXN CW RE BW Dimensions Tough 1 Hard Recommended Machining Data ap f turn f groove IC8250 IC5010 IC830 IC808 IC908 IC428 IC806 IC20 Designation CW RE CWTOL(1) RETOL(2) BW DAXN(3) CDX (mm) (mm/rev) (mm/rev) GDMY 840 8.00 4.00 0.050 0.050 5.60 50.0 25.00 • • • • • • • • 0.00-4.00 0.32-0.67 0.18-0.34 • Can cut arcs to 250° • DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 676-688 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum axial grooving diameter For tools, see pages: C#-GHDR/L (301) • CGHN-8-10D (315) • GADR/L-8 (314) • GADR/L-JHP (315) • GAFG-R/L-8 (661) • GHDKR/L (503) • GHDR/L (long pocket) (313) • GHDR/L-JHP (long pocket) (313) • GHFG-R/L-8 (659) • GHFGR/L-8 (659) • GHIR/L (W=7.0-8.3) (398) ±0.1 30 Ref. GDMY-F Utility Double-Ended Inserts 7º 6.3 Ref. for Grooving and Profiling Ductile Materials CW RE BW Dimensions Tough 1 Hard Recommended Machining Data ap f turn f groove IC808 IC908 Designation CW RE CWTOL(1) RETOL(2) BW CDX(3) (mm) (mm/rev) (mm/rev) GDMY 840F 8.00 4.00 0.050 0.050 5.60 25.00 • • 0.00-4.00 0.32-0.67 0.18-0.34 • DMIN for internal applications = 65 mm • For cutting speed recommendations and user guide, see pages 676-688 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: C#-GHDR/L (301) • CGHN-8-10D (315) • GADR/L-8 (314) • GADR/L-JHP (315) • GAFG-R/L-8 (661) • GHDR/L (long pocket) (313) • GHDR/L-JHP (long pocket) (313) • GHFG-R/L-8 (659) • GHFGR/L-8 (659) • GHIR/L (W=7.0-8.3) (398) 663
