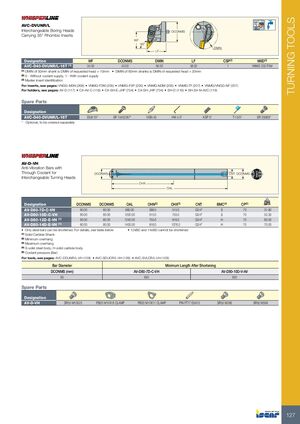

TURNING TOOLS 93º AVC-DVUNR/L 50° MAX Interchangeable Boring Heads DCONMS Carrying 35° Rhombic Inserts WF 93° DMIN LF Designation WF DCONMS DMIN LF CSP(2) MIID(3) AVC-D40-DVUNR/L-16T (1) 34.00 40.00 56.00 38.00 1 VNMG 332-F3M (1) DMIN of 50mm shank is DMIN of requested head + 10mm • DMIN of 60mm shanks is DMIN of requested head + 20mm (2) 0 - Without coolant supply, 1 - With coolant supply (3) Master insert identification For inserts, see pages: VNGG-M3N (268) • VNMG-F3M (205) • VNMG-F3P (205) • VNMG-M3M (205) • VNMG-TF (207) • VNMG/VNGG-NF (207) For holders, see pages: AV-D (117) • C#-AV-C (118) • C#-SH-E-JHP (704) • C#-SH-JHP (704) • SH-D (116) • SH-S#-N-AVC (119) Spare Parts Designation AVC-D40-DVUNR/L-16T DLM 3V* SR 10402267* IVSN 40 HW 4.0* KSP 5* T-15/5* SR 35080I* * Optional, to be ordered separately AV-D-VH Anti-Vibration Bars with Through Coolant for DCONWS CNT DCONMS Interchangeable Turning Heads OHX OAL kg Designation DCONMS DCONWS OAL OHN(2) OHX(3) CNT BMC(4) CP(5) AV-D80-7D-C-VH 80.00 80.00 880.00 396.0 515.0 G3/4" S 70 31.80 AV-D80-10D-C-VH 80.00 80.00 1200.00 515.0 755.0 G3/4" S 70 52.30 AV-D80-12D-E-VH (1) 80.00 80.00 1240.00 755.0 916.0 G3/4" H 70 60.00 AV-D80-14D-E-VH (1) 80.00 80.00 1400.00 916.0 1076.0 G3/4" H 70 70.00 • Only steel bars can be shortened. For details, see table below • 12xBD and 14xBD cannot be shortened (1) Solid Carbide Shank (2) Minimum overhang (3) Maximum overhang (4) S-solid steel body, H-solid carbide body (5) Coolant pressure (Bar) For tools, see pages: AVC-DDUNR/L-VH (128) • AVC-SDUCR/L-VH (128) • AVC-SVLCR/L-VH (128) Bar Diameter Minimum Length After Shortening DCONMS (mm) AV-D80-7D-C-VH AV-D80-10D-V-AV 80 630 630 Spare Parts Designation AV-D-VH SR55 M10X25 PB20 M10X16 CLAMP PB20 M10X11 CLAMP PIN FT77 D5X10 SR55 M3X6 SR50 M5X6 127
