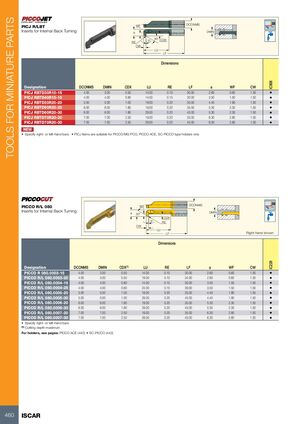

Токарные инструменты Iscar (часть 1) 2026 - страница 462

TOOLS FOR MINIATURE PARTS WF DCONMS PICJ R/LBT Inserts for Internal Back Turning a DMIN 30° CDX RE 3° CW LU LF Dimensions IC908 Designation DCONMS DMIN CDX LU RE LF a WF CW PICJ RBTD30R10-15 4.00 3.00 0.50 14.00 0.10 30.00 2.60 0.60 1.50 • PICJ RBTD40R15-15 4.00 4.00 0.80 14.00 0.15 30.00 3.50 1.50 1.50 • PICJ RBTD50R20-20 5.00 5.00 1.00 19.00 0.20 35.00 4.40 1.90 1.50 • PICJ RBTD60R20-20 6.00 6.00 1.80 19.00 0.20 35.00 5.30 2.30 1.50 • PICJ RBTD60R20-30 6.00 6.00 1.80 29.00 0.20 45.00 5.30 2.30 1.50 • PICJ RBTD70R20-20 7.00 7.00 2.50 19.00 0.20 35.00 6.30 2.80 1.50 • PICJ RBTD70R20-30 7.00 7.00 2.50 29.00 0.20 45.00 6.30 2.80 1.50 • NEW • Specify right- or left-hand bars • PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only DCONMS PICCO R/L 080 WF Inserts for Internal Back Turning a DMIN 30° CDX 3° RE CW LU LF Right-hand shown Dimensions IC228 Designation DCONMS DMIN CDX(1) LU RE LF a WF CW PICCO R 080.0003-15 4.00 3.00 0.50 14.00 0.10 30.00 2.60 0.60 1.50 • PICCO R/L 080.0003-20 4.00 3.00 0.50 19.00 0.10 34.00 2.60 0.60 1.50 • PICCO R/L 080.0004-15 4.00 4.00 0.80 14.00 0.15 30.00 3.50 1.50 1.50 • PICCO R/L 080.0004-25 4.00 4.00 0.80 24.00 0.15 39.00 3.50 1.50 1.50 • PICCO R/L 080.0005-20 5.00 5.00 1.00 19.00 0.20 35.00 4.40 1.90 1.50 • PICCO R/L 080.0005-30 5.00 5.00 1.00 29.00 0.20 45.00 4.40 1.90 1.50 • PICCO R/L 080.0006-20 6.00 6.00 1.80 19.00 0.20 35.00 5.30 2.30 1.50 • PICCO R/L 080.0006-30 6.00 6.00 1.80 29.00 0.20 45.00 5.30 2.30 1.50 • PICCO R/L 080.0007-20 7.00 7.00 2.50 19.00 0.20 35.00 6.30 2.80 1.50 • PICCO R/L 080.0007-30 7.00 7.00 2.50 29.00 0.20 45.00 6.30 2.80 1.50 • • Specify right- or left-hand bars (1) Cutting depth maximum For holders, see pages: PICCO ACE (440) • SC-PICCO (442) 460 ISCAR
