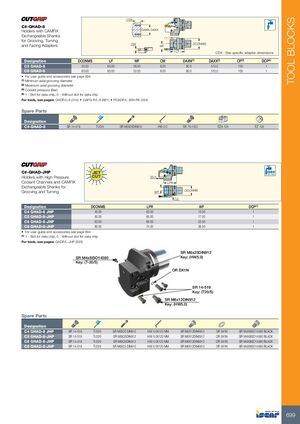

TOOL BLOCKS CDX C#-GHAD-8 Holders with CAMFIX DAXN-DAXX Exchangeable Shanks for Grooving, Turning CW DCONMS and Facing Adapters WF LF CDX - See specific adapter dimensions Designation DCONMS LF WF CW DAXN(1) DAXX(2) CP(3) DCP(4) C5 GHAD-8 50.00 65.00 26.00 8.00 80.0 510.0 100 1 C6 GHAD-8 63.00 65.00 32.50 8.00 80.0 510.0 100 1 • For user guide and accessories see page 694 (1) Minimum axial grooving diameter (2) Maximum axial grooving diameter (3) Coolant pressure (Bar) (4) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: GADR/L-8 (314) • GAFG-R/L-8 (661) • PCADR/L 34N-RE (354) Spare Parts Designation C#-GHAD-8 SR 14-519 T-20/5 SR M6X25DIN912 HW 5.0 SR 76-1022 EZA 125 EZ 125 C#-GHAD-JHP Bar Max Holders with High Pressure 25.5 Coolant Channels and CAMFIX LPR Exchangeable Shanks for Grooving and Turning WF DCONMS 7.0 Designation DCONMS LPR WF DCP(1) C4 GHAD-8 JHP 40.00 62.00 13.00 1 C5 GHAD-8-JHP 50.00 65.00 17.00 1 C6 GHAD-8-JHP 63.00 65.00 23.50 1 C8 GHAD-8-JHP 80.00 74.00 38.50 1 • For user guide and accessories see page 694 (1) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: GADR/L-JHP (320) SR M6x25DIN912 SR M4x8ISO14580 Key: (HW5.0) Key: (T-20/5) OR DX1N SR 14-519 Key: (T20/5) SR M6x12DIN912 Key: (HW5.0) Spare Parts Designation C4 GHAD-8 JHP SR 14-519 T-20/5 SR M6X20 DIN912 HW 5.0X120 MM SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK C5 GHAD-8-JHP SR 14-519 T-20/5 SR M6X25DIN912 HW 5.0X120 MM SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK C6 GHAD-8-JHP SR 14-519 T-20/5 SR M6X25DIN912 HW 5.0X120 MM SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK C8 GHAD-8-JHP SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0X120 MM SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK 699
