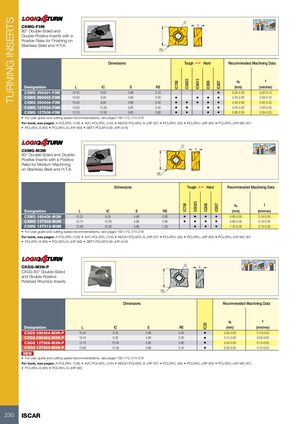

TURNING INSERTS IC 95º S CXMG-F3M 95º 95º 80° Double-Sided and Double-Positive Inserts with a L Positive Rake for Finishing on Stainless Steel and H.T.A. RE Dimensions Tough 1 Hard Recommended Machining Data ap f IC6025 IC6015 IC706 IC806 IC807 Designation L IC S RE (mm) (mm/rev) CXMG 090401-F3M 10.40 9.35 4.66 0.10 • 0.20-2.00 0.02-0.15 CXMG 090402-F3M 10.40 9.35 4.66 0.20 • • • • 0.30-2.00 0.03-0.15 CXMG 090404-F3M 10.40 9.35 4.66 0.40 • • • • • 0.40-2.00 0.05-0.25 CXMG 12T504-F3M 13.83 12.50 5.80 0.40 • • • • 0.40-2.00 0.05-0.25 CXMG 12T508-F3M 13.75 12.50 5.80 0.80 • • • • 0.80-2.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PCLXR/L (129) • AVC-PCLXR/L (124) • NQCH-PCLXR/L-S-JHP (67) • PCLXR/L (65) • PCLXR/L-JHP (65) • PCLXR/L-JHP-MC (67) • PCLXR/L-S (66) • PCLXR/L-S-JHP (66) • SBTT-PCLXR/L09-JHP (418) IC 95º S CXMG-M3M 95º 95º 80° Double-Sided and Double- Positive Inserts with a Positive L Rake for Medium Machining on Stainless Steel and H.T.A. RE Dimensions Tough 1 Hard Recommended Machining Data IC6025 ap f IC706 IC806 IC807 Designation L IC S RE (mm) (mm/rev) CXMG 090408-M3M 10.32 9.35 4.66 0.80 • • • • 0.80-3.00 0.15-0.50 CXMG 12T508-M3M 13.75 12.50 5.80 0.80 • • • • 0.80-5.00 0.15-0.50 CXMG 12T512-M3M 13.68 12.50 5.80 1.20 • • • 1.20-5.00 0.15-0.50 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PCLXR/L (129) • AVC-PCLXR/L (124) • NQCH-PCLXR/L-S-JHP (67) • PCLXR/L (65) • PCLXR/L-JHP (65) • PCLXR/L-JHP-MC (67) • PCLXR/L-S (66) • PCLXR/L-S-JHP (66) • SBTT-PCLXR/L09-JHP (418) 95º IC 75° CXGG-M3N-P S 95º 95º CXGG 80° Double-Sided and Double-Positive L Polished Rhombic Inserts RE Dimensions Recommended Machining Data ap f IC20 Designation L IC S RE (mm) (mm/rev) CXGG 090404-M3N-P 10.40 9.35 4.66 0.40 • 0.30-3.00 0.10-0.50 CXGG 090402-M3N-P 10.44 9.35 4.66 0.20 • 0.15-3.00 0.05-0.50 CXGG 12T508-M3N-P 13.75 12.50 5.80 0.80 • 0.50-5.00 0.15-0.50 CXGG 12T504-M3N-P 13.83 12.50 5.80 0.40 • 0.30-5.00 0.10-0.50 NEW • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PCLXR/L (129) • AVC-PCLXR/L (124) • NQCH-PCLXR/L-S-JHP (67) • PCLXR/L (65) • PCLXR/L-JHP (65) • PCLXR/L-JHP-MC (67) • PCLXR/L-S (66) • PCLXR/L-S-JHP (66) 230 ISCAR
