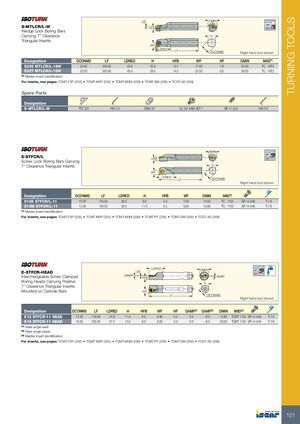

TURNING TOOLS HF DMIN 95º S-MTLCR/L-W HFB Wedge Lock Boring Bars Carrying 7° Clearance H Triangular Inserts WF LDRED LF DCONMS Right hand tool shown Designation DCONMS LF LDRED H HFB WF HF DMIN MIID(1) S25S MTLCR/L-16W 25.00 250.00 43.0 23.0 13.1 17.00 1.6 34.00 TC.. 16T3 S32T MTLCR/L-16W 32.00 300.00 45.0 29.0 14.5 22.00 0.0 39.00 TC.. 16T3 (1) Master insert identification For inserts, see pages: TCMT-F3P (255) • TCMT-M3P (255) • TCMT-M3M (256) • TCMT-SM (256) • TCGT-AS (269) Spare Parts Designation S-MTLCR/L-W TTC 331 HW 2.0 ZNW 3C LC 291-MIM SET 1 SR 17-319 HW 2.5 DMIN 91º S-STFCR/L HFB Screw Lock Boring Bars Carrying 7° Clearance Triangular Inserts H WF LDRED LF DCONMS Right hand tool shown Designation DCONMS LF LDRED H HFB WF DMIN MIID(1) S10K STFCR/L-11 10.00 125.00 29.0 9.0 4.5 7.00 13.00 TC.. 1102 SR 14-548 T-7/5 S12M STFCR/L-11 12.00 150.00 30.0 11.0 5.5 9.00 15.80 TC.. 1102 SR 14-548 T-7/5 (1) Master insert identification For inserts, see pages: TCMT-F3P (255) • TCMT-M3P (255) • TCMT-M3M (256) • TCMT-PF (256) • TCMT-SM (256) • TCGT-AS (269) LDRED DMIN 91º E-STFCR-HEAD HF Interchangeable Screw Clamped GAMP GAMF HFB Boring Heads Carrying Positive H 7° Clearance Triangular Inserts Mounted on Carbide Bars WF LF DCONMS Right hand tool shown Designation DCONMS LF LDRED H HFB WF HF GAMP(1) GAMF(2) DMIN MIID(3) E12 STFCR-11 HEAD 12.00 179.00 24.8 11.0 6.0 6.80 0.0 0.0 -6.0 13.80 TCMT 1102 SR 14-548 T-7/5 E16 STFCR-11 HEAD 16.00 200.00 37.0 15.0 8.0 9.00 0.0 0.0 -6.0 20.00 TCMT 1102 SR 14-548 T-7/5 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: TCMT-F3P (255) • TCMT-M3P (255) • TCMT-M3M (256) • TCMT-PF (256) • TCMT-SM (256) • TCGT-AS (269) 151
