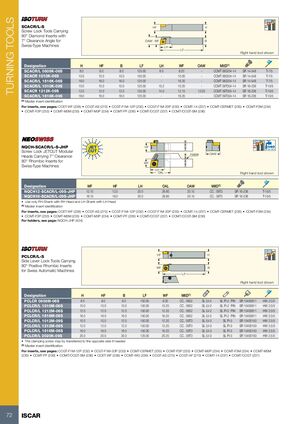

TURNING TOOLS 99° SCACR/L-S HF H 91° Screw Lock Tools Carrying 80° Diamond Inserts with 7° Clearance Angle for OAW WF B Swiss-Type Machines LH LF Right hand tool shown Designation H HF B LF LH WF OAW MIID(1) SCACR/L 0808K-06S 8.0 8.0 8.0 125.00 8.0 8.20 - CCMT 060204-14 SR 14-548 T-7/5 SCACR 1010K-06S 10.0 10.0 10.0 150.00 - 10.00 - CCMT 060204-14 SR 14-548 T-7/5 SCACR/L 1616K-06S 16.0 16.0 16.0 125.00 - 16.20 - CCMT 060204-14 SR 14-548 T-7/5 SCACR/L 1010K-09S 10.0 10.0 10.0 125.00 15.2 10.20 - CCMT 09T304-14 SR 16-236 T-15/5 SCACR 1212K-09S 12.0 12.0 12.0 125.00 14.0 12.15 12.50 CCMT 09T304-14 SR 16-236 T-15/5 SCACR/L 1616K-09S 16.0 16.0 16.0 125.00 - 16.20 - CCMT 09T304-14 SR 16-236 T-15/5 (1) Master insert identification For inserts, see pages: CCET-WF (238) • CCGT-AS (270) • CCGT-F1M-12P (232) • CCGT-F1M-20P (233) • CCMT-14 (237) • CCMT-CERMET (235) • CCMT-F3M (234) • CCMT-F3P (233) • CCMT-M3M (235) • CCMT-M3P (234) • CCMT-PF (236) • CCMT/CCGT (237) • CCMT/CCGT-SM (236) 99° NQCH-SCACR/L-S-JHP HF 91° Bar Max Screw Lock JETCUT Modular Holder OAW Heads Carrying 7° Clearance 80° Rhombic Inserts for WF Swiss-Type Machines LH OAL Right hand tool shown Designation WF HF LH OAL OAW MIID(1) NQCH12-SCACR/L-09S-JHP 12.15 12.0 20.0 28.80 20.15 CC.. 09T3 SR 16-236 T-15/5 NQCH16-SCACR/L-09S-JHP 16.15 16.0 20.0 28.80 20.15 CC.. 09T3 SR 16-236 T-15/5 • Use only RH Shank with RH Head and LH Shank with LH Head (1) Master insert identification For inserts, see pages: CCET-WF (238) • CCGT-AS (270) • CCGT-F1M-12P (232) • CCGT-F1M-20P (233) • CCMT-14 (237) • CCMT-CERMET (235) • CCMT-F3M (234) • CCMT-F3P (233) • CCMT-M3M (235) • CCMT-M3P (234) • CCMT-PF (236) • CCMT/CCGT (237) • CCMT/CCGT-SM (236) For holders, see page: NQCH-JHP (424) 95º HF H PCLCR/L-S 95º Side Lever Lock Tools Carrying 80° Positive Rhombic Inserts WF B for Swiss Automatic Machines LF Right hand tool shown Designation H HF B LF WF MIID(1) PCLCR 0808M-06S 8.0 8.0 8.0 150.00 8.00 CC.. 0602 SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PCLCR/L 1010M-06S 10.0 10.0 10.0 150.00 10.20 CC.. 0602 SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PCLCR/L 1212M-06S 12.0 12.0 12.0 150.00 12.20 CC.. 0602 SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PCLCR/L 1616M-06S 16.0 16.0 16.0 150.00 16.20 CC.. 0602 SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 PCLCR/L 1012M-09S 10.0 10.0 12.0 150.00 12.20 CC.. 09T3 SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 PCLCR/L 1212M-09S 12.0 12.0 12.0 150.00 12.20 CC.. 09T3 SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 PCLCR/L 1616M-09S 16.0 16.0 16.0 150.00 16.20 CC.. 09T3 SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 PCLCR/L 2020K-09S 20.0 20.0 20.0 125.00 20.20 CC.. 09T3 SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 • The clamping screw may by transferred to the opposite side if needed (1) Master insert identification For inserts, see pages: CCGT-F1M-12P (232) • CCGT-F1M-20P (233) • CCMT-CERMET (235) • CCMT-F3P (233) • CCMT-M3P (234) • CCMT-F3M (234) • CCMT-M3M (235) • CCMT-PF (236) • CCMT/CCGT-SM (236) • CCET-WF (238) • CCMT-WG (238) • CCGT-AS (270) • CCGT-AF (270) • CCMT-14 (237) • CCMT/CCGT (237) 72 ISCAR
