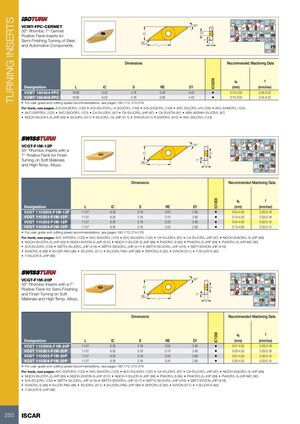

TURNING INSERTS 50° 70°MAX MAX 31º MAX VCMT-FPC-CERMET 35° 91° 52º MAX 112° 93° 72.5º 35° Rhombic 7° Cermet IC D1 93º 95º 107.5º Positive Flank Inserts for 117.5° 25º MAX 50° 48° Semi-Finishing Turning of Steel 7° 35º MAX MAX MAX RE and Automotive Components L S 95º Dimensions Recommended Machining Data IC520N ap f Designation L IC S RE D1 (mm) (mm/rev) VCMT 160404-FPC 16.60 9.52 4.76 0.40 4.40 • 0.70-2.00 0.04-0.22 VCMT 160408-FPC 16.60 9.52 4.76 0.80 4.40 • 0.70-2.00 0.04-0.22 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-SVLBCR/L (150) • A/S-SVLFCR/L; A-SVUCR/L (149) • A/S-SVQCR/L (149) • AVC-SVLCR/L-VH (128) • AVC-SVMCR/L (124) • AVC-SVPCR/L (123) • AVC-SVQCR/L (123) • C#-SVJCR/L (87) • C#-SVJCR/L-JHP (87) • C#-SVVCN (91) • HSK A63WH-SVJCR/L (87) • NQCH-SVJCR/L-S-JHP (85) • SVJCR/L (511) • SVJCR/L-16-JHP (511) • SVVCN (511) • SVXCR/L (512) • AVC-SVLCR/L (123) 50° 70°MAX MAX 31º MAX VCGT-F1M-12P 35° 91° 52º MAX 112° 93° 72.5º 35° Rhombic Inserts with a IC D1 93º 95º 107.5º 7° Positive Flank for Finish 117.5° 25º MAX 50° 48° Turning on Soft Materials 35º 7° MAX MAX MAX RE 52º and High-Temp. Alloys. L S 95º 93º Dimensions Recommended Machining Data ap f IC1008 Designation L IC S RE D1 (mm) (mm/rev) VCGT 1103005-F1M-12P 11.07 6.35 3.18 0.05 2.90 • 0.04-4.50 0.03-0.18 VCGT 110301-F1M-12P 11.07 6.35 3.18 0.10 2.90 • 0.15-4.50 0.03-0.18 VCGT 110302-F1M-12P 11.07 6.35 3.18 0.20 2.90 • 0.04-4.00 0.03-0.15 VCGT 110304-F1M-12P 11.07 6.35 3.18 0.40 2.90 • 0.15-4.00 0.03-0.15 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: AVC-SVPCR/L (123) • AVC-SVQCR/L (123) • AVC-SVUCR/L (122) • C#-SVJCR/L (87) • C#-SVJCR/L-JHP (87) • NQCH-SVACR/L-S-JHP (89) • NQCH-SVJCR/L-S-JHP (85) • NQCH-SVVCN-S-JHP (512) • NQCH-Y-SVJCR-S-JHP (86) • PVACR/L-S (84) • PVACR/L-S-JHP (89) • PVACR/L-S-JHP-MC (90) • S/A-SVJCR/L (150) • SBTT#-SVJCR/L-JHP (416) • SBTT#-SVQCR/L-JHP (417) • SBTT#-SVUCR/L-JHP (416) • SBTT-SVVCN-JHP (416) • SVACR/L-S (88) • SVJCR-PAD (88) • SVJCR/L (511) • SVJCR/L-PAD-JHP (88) • SVPCR/L-S (92) • SVVCN (511) • Y-SVJCR-S (85) • Y-SVJCR-S-JHP (86) 50° 70°MAX MAX 31º MAX VCGT-F1M-20P 35° 91° 52º MAX 112° 93° 72.5º 35° Rhombic Inserts with a 7° IC D1 93º 95º 107.5º Positive Flank for Semi-Finishing 117.5° 25º MAX 50° 48° and Finish Turning on Soft 35º 7° MAX MAX MAX RE 52º Materials and High-Temp. Alloys. L S 95º 93º Dimensions Recommended Machining Data ap f IC1008 Designation L IC S RE D1 (mm) (mm/rev) VCGT 1103005-F1M-20P 11.07 6.35 3.18 0.05 2.90 • 0.07-4.50 0.03-0.18 VCGT 110301-F1M-20P 11.07 6.35 3.18 0.10 2.90 • 0.30-4.50 0.03-0.18 VCGT 110302-F1M-20P 11.07 6.35 3.18 0.20 2.90 • 0.07-4.00 0.03-0.15 VCGT 110304-F1M-20P 11.07 6.35 3.18 0.40 2.90 • 0.30-4.00 0.03-0.15 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: AVC-SVPCR/L (123) • AVC-SVQCR/L (123) • AVC-SVUCR/L (122) • C#-SVJCR/L (87) • C#-SVJCR/L-JHP (87) • NQCH-SVACR/L-S-JHP (89) • NQCH-SVJCR/L-S-JHP (85) • NQCH-SVVCN-S-JHP (512) • NQCH-Y-SVJCR-S-JHP (86) • PVACR/L-S (84) • PVACR/L-S-JHP (89) • PVACR/L-S-JHP-MC (90) • S/A-SVJCR/L (150) • SBTT#-SVJCR/L-JHP (416) • SBTT#-SVQCR/L-JHP (417) • SBTT#-SVUCR/L-JHP (416) • SBTT-SVVCN-JHP (416) • SVACR/L-S (88) • SVJCR-PAD (88) • SVJCR/L (511) • SVJCR/L-PAD-JHP (88) • SVPCR/L-S (92) • SVVCN (511) • Y-SVJCR-S (85) • Y-SVJCR-S-JHP (86) 250 ISCAR
