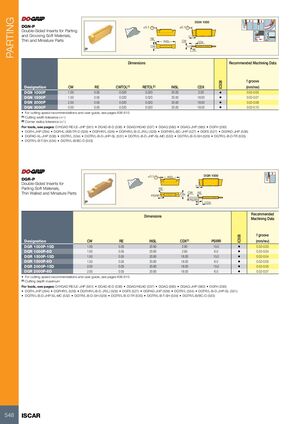

PARTING DGN 1000 DGN-P ±0.1 ±0.1 Double-Sided Inserts for Parting and Grooving Soft Materials, 7° RE Thin and Miniature Parts INSL CW CDX CW RE Dimensions Recommended Machining Data f groove IC508 Designation CW RE CWTOL(1) RETOL(2) INSL CDX (mm/rev) DGN 1000P 1.00 0.05 0.020 0.020 20.00 3.00 • 0.02-0.05 DGN 1500P 1.50 0.05 0.020 0.020 20.00 18.00 • 0.02-0.07 DGN 2000P 2.00 0.05 0.020 0.020 20.00 18.00 • 0.02-0.08 DGN 3000P 3.00 0.05 0.020 0.020 20.00 18.00 • 0.02-0.10 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: D/HGAD RE/LE-JHP (561) • DGAD-B-D (538) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHL-26B-TR-D (528) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFHR/L-BC-JHP (527) • DGFS (527) • DGPAD-JHP (538) • DGPAD-XL-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B-D-TR (535) • DGTR/L-B-T-SH (534) • DGTR/L-B/BC-D (533) ±0.1 lNSL DGR 1000 DGR-P Double-Sided Inserts for 7° Parting Soft Materials, RE Thin Walled and Miniature Parts CW RE PSIRR CW PSIRR CDX Recommended Dimensions Machining Data f groove Designation CW RE INSL CDX(1) PSIRR IC508 (mm/rev) DGR 1000P-15D 1.00 0.05 20.60 2.90 15.0 • 0.02-0.03 DGR 1000P-6D 1.00 0.05 20.60 2.90 6.0 • 0.02-0.04 DGR 1500P-15D 1.50 0.05 20.60 18.00 15.0 • 0.02-0.04 DGR 1500P-6D 1.50 0.05 20.60 18.00 6.0 • 0.02-0.05 DGR 2000P-15D 2.00 0.05 20.60 18.00 15.0 • 0.02-0.05 DGR 2000P-6D 2.00 0.05 20.60 18.00 6.0 • 0.02-0.07 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting depth maximum For tools, see pages: D/HGAD RE/LE-JHP (561) • DGAD-B-D (538) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFS (527) • DGPAD-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B-D-TR (535) • DGTR/L-B-T-SH (534) • DGTR/L-B/BC-D (533) 548 ISCAR
