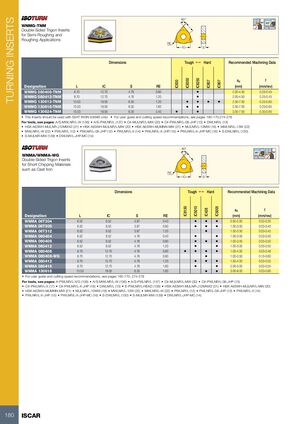

TURNING INSERTS 80° 95° 95º WNMG-TNM L 95° Double-Sided Trigon Inserts for Semi-Roughing and Roughing Applications RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8350 IC8250 IC830 IC807 IC907 Designation L IC S RE (mm) (mm/rev) WNMG 080408-TNM 8.70 12.70 4.76 0.80 • 2.00-4.50 0.25-0.45 WNMG 080412-TNM 8.70 12.70 4.76 1.20 • 2.00-4.50 0.25-0.45 WNMG 130612-TNM 13.03 19.05 6.35 1.20 • • • • 2.50-7.00 0.25-0.65 WNMG 130616-TNM 13.03 19.05 6.35 1.60 • • 2.50-7.00 0.25-0.65 WNMG 130624-TNM 13.03 19.05 6.35 2.40 • • 3.00-7.00 0.30-0.65 • This inserts should be used with SEAT IWSN 635M3 only! • For user guide and cutting speed recommendations, see pages 160-170,274-278 For tools, see pages: A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • DWLNR/L (13) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-13W (22) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 80° 95º 95° WNMA/WNMA-WG L 95° Double-Sided Trigon Inserts for Short Chipping Materials such as Cast Iron RE IC S Dimensions Tough 1 Hard Recommended Machining Data IC8150 IC5010 IC5005 ap f IC428 Designation L IC S RE (mm) (mm/rev) WNMA 06T304 6.52 9.52 3.97 0.40 • • • 0.50-2.00 0.03-0.30 WNMA 06T308 6.52 9.52 3.97 0.80 • • • 1.00-3.00 0.03-0.40 WNMA 06T312 6.52 9.52 3.97 1.20 • 1.50-3.50 0.03-0.45 WNMA 060404 6.52 9.52 4.76 0.40 • • 1.00-3.00 0.03-0.50 WNMA 060408 6.52 9.52 4.76 0.80 • • • 1.00-3.00 0.03-0.50 WNMA 060412 6.52 9.52 4.76 1.20 • • 1.00-3.00 0.03-0.50 WNMA 080408 8.70 12.70 4.76 0.80 • • • • 1.00-4.00 0.03-0.48 WNMA 080408-WG 8.70 12.70 4.76 0.80 • 1.00-3.50 0.10-0.60 WNMA 080412 8.70 12.70 4.76 1.20 • • • 1.50-4.00 0.03-0.55 WNMA 080416 8.70 12.70 4.76 1.60 • • 2.00-5.00 0.03-0.55 WNMA 130616 13.03 19.05 6.35 1.60 • • 3.00-8.00 0.03-0.80 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PWLNR/L-X/G (138) • A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • E-PWLNR/L-HEAD (138) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-13W (22) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 180 ISCAR
