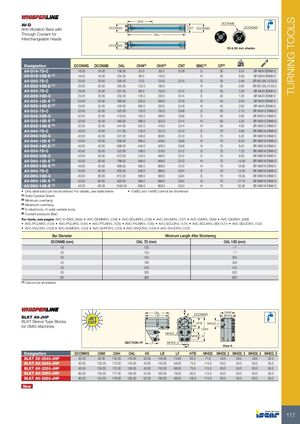

TURNING TOOLS OHX DCONMS AV-D DCONWS CNT DCONMS DCONWS Anti-Vibration Bars with Through Coolant for OAL Interchangeable Heads DCONWS 50 & 60 mm shanks kg Designation DCONWS DCONMS OAL OHN(2) OHX(3) CNT BMC(4) CP(5) AV-D16-7D-C 16.00 16.00 156.30 55.0 92.0 G1/8 S 30 0.24 SR M3X10DIN912 AV-D16-10D-E (1) 16.00 16.00 204.30 96.0 140.0 - H 30 0.58 SR M3X10DIN912 AV-D20-7D-C 20.00 20.00 200.30 70.0 120.0 G1/4 S 30 0.48 SR M3.5XL10-D5.5 AV-D20-10D-E (1) 20.00 20.00 260.30 120.0 180.0 - H 30 0.80 SR M3.5XL10-D5.5 AV-D25-7D-C 25.00 25.00 257.50 88.0 155.0 G1/4 S 40 1.00 SR M4X12DIN912 AV-D25-10D-C 25.00 25.00 332.50 155.0 230.0 G1/4 S 40 1.30 SR M4X12DIN912 AV-D25-12D-E (1) 25.00 25.00 380.00 230.0 280.0 G1/8 H 40 2.00 SR M4X12DIN912 AV-D25-14D-E (1) 25.00 25.00 430.00 280.0 330.0 G1/8 H 40 2.60 SR M4X12DIN912 AV-D32-7D-C 32.00 32.00 323.00 120.0 192.0 G3/8 S 50 2.10 SR M5X12 DIN912 AV-D32-10D-C 32.00 32.00 419.00 192.0 288.0 G3/8 S 50 2.80 SR M5X12 DIN912 AV-D32-12D-E (1) 32.00 32.00 480.00 288.0 352.0 G1/4 H 50 4.20 SR M5X12 DIN912 AV-D32-14D-E (1) 32.00 32.00 544.00 352.0 416.0 G1/4 H 50 4.80 SR M5X12 DIN912 AV-D40-7D-C 40.00 40.00 411.00 128.0 251.0 G1/2 S 70 4.60 SR M6X16 DIN912 AV-D40-10D-C 40.00 40.00 531.00 248.0 368.0 G1/2 S 70 5.30 SR M6X16 DIN912 AV-D40-12D-E (1) 40.00 40.00 608.00 368.0 448.0 G3/8 H 70 8.30 SR M6X16 DIN912 AV-D40-14D-E (1) 40.00 40.00 688.00 448.0 528.0 G3/8 H 70 9.40 SR M6X16 DIN912 AV-D50-7D-C 40.00 50.00 523.00 168.0 318.0 G1/2 S 70 7.20 SR M6X16 DIN912 AV-D50-10D-C 40.00 50.00 673.00 318.0 468.0 G1/2 S 70 9.30 SR M6X16 DIN912 AV-D50-12D-E (1) 40.00 50.00 768.00 468.0 568.0 G1/2 H 70 14.40 SR M6X16 DIN912 AV-D50-14D-E (1) 40.00 50.00 868.00 568.0 668.0 G1/2 H 70 16.60 SR M6X16 DIN912 AV-D60-7D-C 40.00 60.00 633.00 208.0 388.0 G3/4 S 70 12.50 SR M6X16 DIN912 AV-D60-10D-C 40.00 60.00 813.00 388.0 568.0 G3/4 S 70 16.30 SR M6X16 DIN912 AV-D60-12D-E (1) 40.00 60.00 920.00 588.0 688.0 G3/4 H 70 27.10 SR M6X16 DIN912 AV-D60-14D-E (1) 40.00 60.00 1040.00 688.0 808.0 G3/4 H 70 30.90 SR M6X16 DIN912 • Only steel bars can be shortened. For details, see table below • 12xBD and 14xBD cannot be shortened (1) Solid Carbide Shank (2) Minimum overhang (3) Maximum overhang (4) S-steel body, H-solid carbide body (5) Coolant pressure (Bar) For tools, see pages: AVC-D-SIR/L (805) • AVC-DDMNR/L (126) • AVC-DDUNR/L (126) • AVC-DVUNR/L (127) • AVC-GAIR/L (390) • AVC-GEAIR/L (389) • AVC-PCLNR/L (124) • AVC-PCLXR/L (124) • AVC-PTLNR/L (125) • AVC-PXJNR/L (125) • AVC-SCLCR/L (121) • AVC-SCLXR/L-06X (121) • AVC-SDUCR/L (122) • AVC-SVLCR/L (123) • AVC-SVMCR/L (124) • AVC-SVPCR/L (123) • AVC-SVQCR/L (123) • AVC-SVUCR/L (122) Bar Diameter Minimum Length After Shortening DCONMS (mm) OAL 7D (mm) OAL 10D (mm) 16 100 - (1) 20 125 - (1) 25 155 255 32 190 320 40 240 410 50 305 520 60 380 630 (1) Cannot be shortened A OAW OAL DCONWS LB F MHD2 BLKT AV-JHP BLKT Sleeve Type Blocks HTB MHD2_2 for DMG Machines H5 OAH MHD2_3 MHD2_4 SECTION-FF LF MHD2_5 F View A Designation DCONWS OAW OAH OAL H5 LB LF HTB MHD2 MHD2_2 MHD2_3 MHD2_4 MHD2_5 BLKT AV-2540-JHP 40.00 92.00 145.00 145.00 30.00 140.00 74.00 63.0 71.0 43.0 48.0 48.0 32.0 BLKT AV-3240-JHP 40.00 135.00 172.00 145.00 40.00 140.00 58.00 75.0 115.0 63.0 50.0 63.0 50.0 BLKT AV-3250-JHP 50.00 135.00 172.00 155.00 40.00 150.00 68.00 75.0 115.0 63.0 50.0 63.0 50.0 BLKT AV-3260-JHP 60.00 135.00 177.00 165.00 40.00 160.00 78.00 80.0 115.0 63.0 50.0 63.0 50.0 BLKT AV-3280-JHP 80.00 134.00 179.00 185.00 50.00 180.00 98.00 100.0 115.0 63.0 50.0 63.0 50.0 New 117
