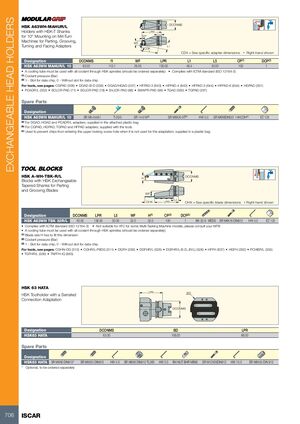

EXCHANGEABLE HEAD HOLDERS 10° DCONMS HSK A63WH-MAHUR/L Holders with HSK-T Shanks LPR L5 for 10° Mounting on Mill-Turn 10° Machines for Parting, Grooving, WF Turning and Facing Adapters CDX L1 f1 CDX = See specific adapter dimensions • Right-hand shown Designation DCONMS f1 WF LPR L1 L5 CP(1) DCP(2) HSK A63WH MAHUR/L 10 63.00 113.1 29.00 130.00 49.4 30.00 100 1 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • Complies with ICTM standard (ISO 12164-3) (1) Coolant pressure (Bar) (2) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: CGPAD (308) • DGAD-B-D (538) • DGAD/HGAD (537) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HGPAD (291) • PCADR/L (353) • SCLCR-PAD (71) • SDJCR-PAD (78) • SVJCR-PAD (88) • SWAPR-PAD (96) • TGAD (560) • TGPAD (297) Spare Parts Designation HSK A63WH MAHUR/L 10 SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in a plastic bag HSK A-WH-TBK-R/L H DCONMS Blocks with HSK Exchangeable Tapered Shanks for Parting and Grooving Blades WF L5 OHX LPR OHX = See specific blade dimensions • Right-hand shown Designation DCONMS LPR L5 WF H(1) CP(2) DCP(3) HSK A63WH TBK 32R/L 63.00 138.00 30.00 32.0 32.0 100 1 BK 32-9 WEDG SR M6X16 DIN912 HW 5.0 EZ 125 • Complies with ICTM standard (ISO 12164-3) • Not suitable for ATC for some Multi-Tasking Machine models, please consult your MTB • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) (1) Blade size H has to fit this dimension (2) Coolant pressure (Bar) (3) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: CGHN-DG (310) • CGHR/L-P8DG (311) • DGFH (293) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • HFFH (637) • HGFH (292) • PCHBR/L (355) • TGFHR/L (556) • TNFFH-IQ (665) HSK 63 HATA LPR BD HSK Toolholder with a Serrated Connection Adaptation DCONMS Designation DCONMS BD LPR HSK63 HATA 63.00 106.00 86.00 Spare Parts Designation HSK63 HATA SR M6X6 DIN913* SR M8X25 DIN913 HW 4.0 SR M6X6 DIN913 TL360 HW 3.0 BH NUT BHR MB80 SR M12X35DIN912 HW 10.0 SR M8X45 DIN 913 * Optional, to be ordered separately 706 ISCAR
