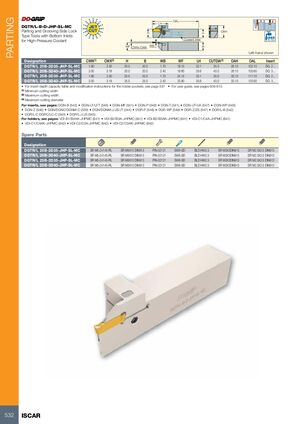

PARTING OAL LH DGTR/L-B-D-JHP-SL-MC Parting and Grooving Side Lock H H OAH Type Tools with Bottom Inlets for High-Pressure Coolant Coolant Inlet Bar Max WF CWN-CWX WB B Left-hand shown Designation CWN(1) CWX(2) H B WB WF LH CUTDIA(3) OAH OAL Insert DGTR/L 20B-2D35-JHP-SL-MC 1.90 2.50 20.0 20.0 1.70 19.15 32.1 35.0 28.10 102.10 DG. 2... DGTR/L 20B-3D40-JHP-SL-MC 3.00 3.18 20.0 20.0 2.40 18.80 35.6 40.0 28.10 105.60 DG. 3... DGTR/L 25B-2D35-JHP-SL-MC 1.90 2.50 25.0 25.0 1.70 24.15 32.1 35.0 33.10 117.10 DG. 2... DGTR/L 25B-3D40-JHP-SL-MC 3.00 3.18 25.0 25.0 2.40 23.80 35.6 40.0 33.10 120.60 DG. 3... • For insert depth capacity table and modification instructions for the holder pockets, see page 537 • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum cutting diameter For inserts, see pages: DGN-B (542) • DGN-LF/LFT (546) • DGN-MF (541) • DGN-P (548) • DGN-T (541) • DGN-UT/UA (547) • DGN-WP (549) • DGN-Z (546) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGR-P (548) • DGR-WP (549) • DGR-Z/ZS (547) • DGR/L-B (542) • DGR/L-C DGRC/LC-C (540) • DGR/L-J/JS (545) For holders, see pages: VDI-B1/B4AK-JHPMC (841) • VDI-B2/B3A-JHPMC (841) • VDI-B2/B3AK-JHPMC (841) • VDI-C1/C4A-JHPMC (841) • VDI-C1/C4AK-JHPMC (842) • VDI-C2/C3A-JHPMC (842) • VDI-C2/C3AK-JHPMC (842) Spare Parts Designation DGTR/L 20B-2D35-JHP-SL-MC SR M5-24145-RL SR M8X10 DIN913 PIN-32121 SW6-SD BLD HW2.5 SR M3X3DIN913 SR M2.5X2.5 DIN913 DGTR/L 20B-3D40-JHP-SL-MC SR M5-24145-RL SR M8X10 DIN913 PIN-32121 SW6-SD BLD HW2.5 SR M3X3DIN913 SR M2.5X2.5 DIN913 DGTR/L 25B-2D35-JHP-SL-MC SR M5-24145-RL SR M8X10 DIN913 PIN-32121 SW6-SD BLD HW2.5 SR M3X3DIN913 SR M2.5X2.5 DIN913 DGTR/L 25B-3D40-JHP-SL-MC SR M5-24145-RL SR M8X10 DIN913 PIN-32121 SW6-SD BLD HW2.5 SR M3X3DIN913 SR M2.5X2.5 DIN913 532 ISCAR
