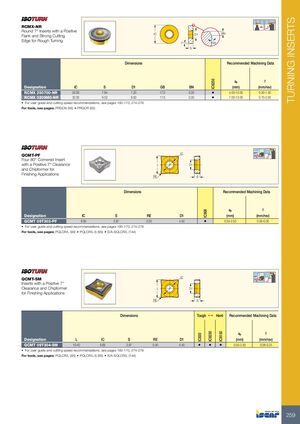

Токарные инструменты Iscar (часть 1) 2026 - страница 261

TURNING INSERTS RCMX-NR Round 7° Inserts with a Positive IC D1 BN Flank and Strong Cutting Edge for Rough Turning 7° GB S Dimensions Recommended Machining Data ap f IC8250 Designation IC S D1 GB BN (mm) (mm/rev) RCMX 250700-NR 25.00 7.94 7.20 17.0 0.30 • 4.00-10.00 0.50-1.50 RCMX 3209M0-NR 32.00 9.52 9.50 17.0 0.30 • 7.00-13.00 0.70-2.00 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: PRDCN (95) • PRGCR (95) IC 95º QCMT-PF 95° Four 80° Cornered Insert with a Positive 7° Clearance L D1 and Chipformer for Finishing Applications RE S Dimensions Recommended Machining Data ap f IC908 Designation IC S RE D1 (mm) (mm/rev) QCMT 09T302-PF 9.65 3.97 0.20 4.40 • 0.50-2.50 0.05-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: PQLCR/L (95) • PQLCR/L-S (95) • S/A-SQLCR/L (144) IC 95º QCMT-SM 95° Inserts with a Positive 7° Clearance and Chipformer L D1 for Finishing Applications RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC830 Designation L IC S RE D1 (mm) (mm/rev) QCMT 09T304-SM 10.40 9.65 3.97 0.40 4.40 • • • 0.50-2.50 0.06-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: PQLCR/L (95) • PQLCR/L-S (95) • S/A-SQLCR/L (144) 259
