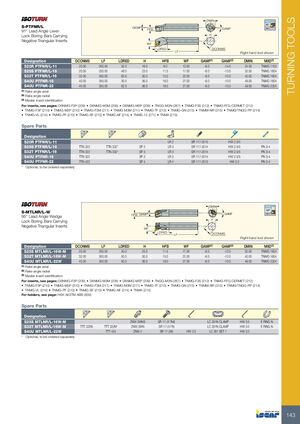

TURNING TOOLS DMIN 91º S-PTFNR/L GAMP GAMF HFB 91° Lead Angle Lever Lock Boring Bars Carrying H Negative Triangular Inserts WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF GAMP(1) GAMF(2) DMIN MIID(3) S20R PTFNR/L-11 20.00 200.00 32.0 18.0 9.0 13.00 -6.0 -14.0 24.00 TNMG 1103 S25S PTFNR/L-16 25.00 250.00 48.0 23.0 11.5 17.00 -6.0 -13.0 32.50 TNMG 1604 S32T PTFNR/L-16 32.00 300.00 63.0 30.0 15.0 22.00 -6.0 -10.0 40.00 TNMG 1604 S40U PTFNR-16 40.00 350.00 30.0 36.0 18.0 27.00 -6.0 -10.0 49.00 TNMG 1604 S40U PTFNR-22 40.00 350.00 62.0 36.0 18.0 27.00 -6.0 -10.0 49.00 TNMG 2204 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: D6NMG-F3P (209) • D6NMG-M3M (209) • D6NMG-M3P (209) • TNGG-M3N (267) • TNMG-F3S (212) • TNMG-FFG-CERMET (212) • TNMG-F3P (210) • TNMG-M3P (210) • TNMG-F3M (211) • TNMG-M3M (211) • TNMG-TF (213) • TNMG-GN (215) • TNMM-NR (215) • TNMG/TNGG-PP (214) • TNMG-VL (214) • TNMG-PF (213) • TNMG-SF (213) • TNMG-NF (214) • TNMS-12 (271) • TNMA (215) Spare Parts Designation S20R PTFNR/L-11 LR 2 SR 117-2015 HW 2.0/5 S25S PTFNR/L-16 TTN 322 TTN 332* SP 3 LR 3 SR 117-2014 HW 2.5/5 PN 3-4 S32T PTFNR/L-16 TTN 322 TTN 332* SP 3 LR 3 SR 117-2014 HW 2.5/5 PN 3-4 S40U PTFNR-16 TTN 322 SP 3 LR 3 SR 117-2014 HW 2.5/5 PN 3-4 S40U PTFNR-22 TTN 422 SP 4 LR 4 SR 117-2010 HW 3.0 PN 3-4 * Optional, to be ordered separately DMIN 95º S-MTLNR/L-W GAMF HFB GAMP 95° Lead Angle Wedge H Lock Boring Bars Carrying Negative Triangular Inserts WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF GAMP(1) GAMF(2) DMIN MIID(3) S25S MTLNR/L-16W-M 25.00 250.00 40.0 23.0 11.5 17.00 -6.0 -12.0 32.00 TNMG 1604 S32T MTLNR/L-16W-M 32.00 300.00 50.0 30.0 15.0 22.00 -6.0 -12.0 40.00 TNMG 1604 S40U MTLNR/L-22W 40.00 350.00 50.0 36.0 18.0 27.00 -6.0 -10.0 49.00 TNMG 2204 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: D6NMG-F3P (209) • D6NMG-M3M (209) • D6NMG-M3P (209) • TNGG-M3N (267) • TNMG-F3S (212) • TNMG-FFG-CERMET (212) • TNMG-F3P (210) • TNMG-M3P (210) • TNMG-F3M (211) • TNMG-M3M (211) • TNMG-TF (213) • TNMG-GN (215) • TNMM-NR (215) • TNMG/TNGG-PP (214) • TNMG-VL (214) • TNMG-PF (213) • TNMG-SF (213) • TNMG-NF (214) • TNMA (215) For holders, see page: HSK A63TM ABB (839) Spare Parts Designation S25S MTLNR/L-16W-M ZNW 3WNS SR 17-317NS LC 291N CLAMP HW 3.0 E RING N S32T MTLNR/L-16W-M TTT 322N TTT 332N* ZNW 3WN SR 17-317N LC 291N CLAMP HW 3.0 E RING N S40U MTLNR/L-22W TTT 434 ZNW 4 SR 17-295 HW 2.5 LC 281 SET 1 HW 3.0 * Optional, to be ordered separately 143
