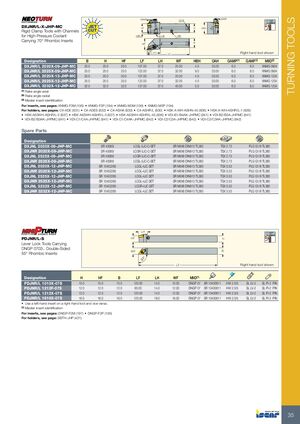

Токарные инструменты Iscar (часть 1) 2026 - страница 37

TURNING TOOLS GAMP GAMF G1/8 15° MAX DXJNR/L-X-JHP-MC HF H OAH 93° Rigid Clamp Tools with Channels for High-Pressure Coolant HBH G 1/8 M6 Carrying 70° Rhombic Inserts B WF 93˚ LH LF Right hand tool shown Designation B H HF LF LH WF HBH OAH GAMP(1) GAMF(2) MIID(3) DXJNR/L 2020X-09-JHP-MC 20.0 20.0 20.0 107.00 37.0 25.00 4.0 33.00 6.0 6.0 XNMG 0904 DXJNR/L 2525X-09-JHP-MC 25.0 25.0 25.0 122.00 37.0 32.00 9.0 33.00 6.0 6.0 XNMG 0904 DXJNR/L 2020X-12-JHP-MC 20.0 20.0 20.0 107.00 37.0 25.00 4.0 33.00 6.0 6.0 XNMG 1204 DXJNR/L 2525X-12-JHP-MC 25.0 25.0 25.0 122.00 37.0 32.00 4.0 33.00 6.0 6.0 XNMG 1204 DXJNR/L 3232X-12-JHP-MC 32.0 32.0 32.0 137.00 37.0 40.00 0.0 33.00 6.0 6.0 XNMG 1204 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: XNMG-F3M (195) • XNMG-F3P (194) • XNMG-M3M (195) • XNMG-M3P (194) For holders, see pages: C#-ADE (831) • C#-ADES (832) • C#-ASHA (830) • C#-ASHR/L (830) • HSK A-WH-ASHN-45 (836) • HSK A-WH-ASHR/L-1 (836) • HSK A63WH-ASHR/L-2 (837) • HSK A63WH-ASHR/L-3 (837) • HSK A63WH-ASHR/L-45 (836) • VDI-B1/B4AK-JHPMC (841) • VDI-B2/B3A-JHPMC (841) • VDI-B2/B3AK-JHPMC (841) • VDI-C1/C4A-JHPMC (841) • VDI-C1/C4AK-JHPMC (842) • VDI-C2/C3A-JHPMC (842) • VDI-C2/C3AK-JHPMC (842) Spare Parts Designation DXJNL 2020X-09-JHP-MC SR 40085I LCGL-3JC-C-SET SR M6X6 DIN913 TL360 TSX 2.73 PLG G1/8 TL360 DXJNR 2020X-09-JHP-MC SR 40085I LCGR-3JC-C-SET SR M6X6 DIN913 TL360 TSX 2.73 PLG G1/8 TL360 DXJNL 2525X-09-JHP-MC SR 40085I LCGR-3JC-C-SET SR M6X6 DIN913 TL360 TSX 2.73 PLG G1/8 TL360 DXJNR 2525X-09-JHP-MC SR 40085I LCGL-3JC-C-SET SR M6X6 DIN913 TL360 TSX 2.73 PLG G1/8 TL360 DXJNL 2020X-12-JHP-MC SR 10402265 LCGL-4JC SET SR M6X6 DIN913 TL360 TSX 3.53 PLG G1/8 TL360 DXJNR 2020X-12-JHP-MC SR 10402265 LCGL-4JC SET SR M6X6 DIN913 TL360 TSX 3.53 PLG G1/8 TL360 DXJNL 2525X-12-JHP-MC SR 10402265 LCGL-4JC SET SR M6X6 DIN913 TL360 TSX 3.53 PLG G1/8 TL360 DXJNR 2525X-12-JHP-MC SR 10402265 LCGL-4JC SET SR M6X6 DIN913 TL360 TSX 3.53 PLG G1/8 TL360 DXJNL 3232X-12-JHP-MC SR 10402265 LCGR-4JC SET SR M6X6 DIN913 TL360 TSX 3.53 PLG G1/8 TL360 DXJNR 3232X-12-JHP-MC SR 10402265 LCGL-4JC SET SR M6X6 DIN913 TL360 TSX 3.53 PLG G1/8 TL360 LH 27° MAX PDJNR/L-S HF H 93° Lever Lock Tools Carrying DNGP 0703.. Double-Sided B WF 55° Rhombic Inserts ° 93 LF Right hand tool shown Designation H HF B LF LH WF MIID(1) PDJNR/L 1010X-07S 10.0 10.0 10.0 120.00 14.0 10.00 DNGP 07 SR 10400611 HW 2.0/5 SL LV-2 SL PI-2 PIN PDJNR/L 1212F-07S 12.0 12.0 12.0 85.00 14.0 12.00 DNGP 07 SR 10400611 HW 2.0/5 SL LV-2 SL PI-2 PIN PDJNR/L 1212X-07S 12.0 12.0 12.0 120.00 14.0 12.00 DNGP 07 SR 10400611 HW 2.0/5 SL LV-2 SL PI-2 PIN PDJNR/L 1616X-07S 16.0 16.0 16.0 120.00 18.0 16.00 DNGP 07 SR 10400611 HW 2.0/5 SL LV-2 SL PI-2 PIN • Use a left-hand insert on a right-hand tool and vice versa. (1) Master insert identification For inserts, see pages: DNGP-F2M (197) • DNGP-F2P (195) For holders, see page: SBTH-JHP (421) 35
