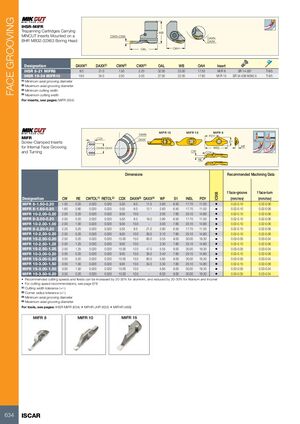

Токарные инструменты Iscar (часть 1) 2026 - страница 636

FACE GROOVING IHSR-MIFR Trepanning Cartridges Carrying WB MINCUT Inserts Mounted on a CWN-CWX DAXN BHR MB32-32X63 Boring Head DAXX OAL OAH Designation DAXN(1) DAXX(2) CWN(3) CWX(4) OAL WB OAH Insert IHSR 8-21 MIFR8 8.0 21.0 1.50 2.20 32.00 23.00 17.50 MI.R 8 SR 14-297 T-8/5 IHSR 19-34 MIFR10 19.0 34.0 2.00 3.00 27.00 22.00 17.80 MI.R 10 SR 34-506 M3X0.5 T-9/5 (1) Minimum axial grooving diameter (2) Maximum axial grooving diameter (3) Minimum cutting width (4) Maximum cutting width For inserts, see pages: MIFR (634) MIFR 15 MIFR 10 MIFR 8 DAXN PDY MIFR CDX DAXX Screw-Clamped Inserts S1 for Internal Face Grooving DAXN-DAXX INSL WF and Turning CW CDX RE Dimensions Recommended Machining Data f face-groove f face-turn IC908 Designation CW RE CWTOL(1) RETOL(2) CDX DAXN(3) DAXX(4) WF S1 INSL PDY (mm/rev) (mm/rev) MIFR 8-1.50-0.20 1.50 0.20 0.020 0.020 5.50 8.0 11.5 2.60 6.50 17.70 11.00 • 0.02-0.10 0.02-0.06 MIFR 8-1.60-0.80 1.60 0.80 0.020 0.020 5.50 8.0 12.1 2.60 6.50 17.70 11.00 • 0.02-0.10 0.02-0.06 MIFR 10-2.00-0.20 2.00 0.20 0.020 0.020 9.00 10.0 - 3.00 7.60 25.10 14.80 • 0.02-0.10 0.02-0.06 MIFR 8-2.00-0.20 2.00 0.20 0.020 0.020 5.50 8.0 16.0 2.80 6.50 17.70 11.00 • 0.02-0.10 0.02-0.06 MIFR 10-2.00-1.00 2.00 1.00 0.020 0.020 9.00 10.0 - 3.00 7.60 25.10 14.80 • 0.02-0.10 0.02-0.06 MIFR 8-2.20-0.20 2.20 0.20 0.020 0.020 5.50 8.0 21.0 2.90 6.50 17.70 11.00 • 0.02-0.10 0.02-0.06 MIFR 10-2.50-0.20 2.50 0.20 0.020 0.020 9.00 10.0 30.0 3.10 7.60 25.10 14.80 • 0.02-0.10 0.02-0.06 MIFR 15-2.50-0.20 2.50 0.20 0.020 0.020 15.00 15.0 60.0 5.55 9.00 30.00 19.30 • 0.03-0.05 0.03-0.04 MIFR 10-2.50-1.25 2.50 1.25 0.020 0.020 9.00 10.0 - 3.30 7.60 25.10 14.80 • 0.02-0.10 0.02-0.06 MIFR 15-2.50-1.25 2.50 1.25 0.020 0.020 15.00 12.0 47.0 5.55 9.00 30.00 19.30 • 0.03-0.05 0.03-0.04 MIFR 10-3.00-0.20 3.00 0.20 0.020 0.020 9.00 10.0 30.0 3.40 7.60 25.10 14.80 • 0.02-0.10 0.02-0.06 MIFR 15-3.00-0.20 3.00 0.20 0.020 0.020 15.00 15.0 60.0 5.85 9.00 30.00 19.30 • 0.03-0.05 0.03-0.04 MIFR 10-3.00-1.50 3.00 1.50 0.020 0.020 9.00 10.0 34.0 3.30 7.60 25.10 14.80 • 0.02-0.10 0.02-0.06 MIFR 15-3.00-1.50 3.00 1.50 0.020 0.020 15.00 10.0 - 5.85 9.00 30.00 19.30 • 0.03-0.05 0.03-0.04 MIFR 15-3.50-0.20 3.50 0.20 0.020 0.020 15.00 10.0 - 6.00 9.00 30.00 19.30 • 0.03-0.05 0.03-0.04 • Recommended cutting speeds and feeds can be increased by 20-30% for aluminim, and reduced by 20-30% for titanium and Inconel • For cutting speed recommendaions, see page 678 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum axial grooving diameter (4) Maximum axial grooving diameter For tools, see pages: IHSR-MIFR (634) • MFHR-JHP (633) • MIFHR (468) 634 ISCAR
