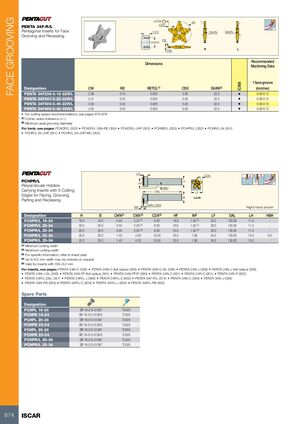

Токарные инструменты Iscar (часть 1) 2026 - страница 676

FACE GROOVING ±0.04 34 CDX PENTA 34F-R/L Pentagonal Inserts for Face CDX DAXN DAXN Grooving and Recessing RE DAXN CW R L Recommended Dimensions Machining Data f face-groove IC908 Designation CW RE RETOL(1) CDX DAXN(2) (mm/rev) PENTA 34F239-0.15-22R/L 2.39 0.15 0.020 5.00 22.0 • 0.08-0.12 PENTA 34F247-0.20-22R/L 2.47 0.20 0.020 5.00 22.0 • 0.08-0.12 PENTA 34F300-0.40-22R/L 3.00 0.40 0.020 5.00 22.0 • 0.08-0.15 PENTA 34F400-0.40-22R/L 4.00 0.40 0.020 5.00 22.0 • 0.08-0.15 • For cutting speed recommendations, see pages 676-678 (1) Corner radius tolerance (+/-) (2) Minimum axial grooving diameter For tools, see pages: PCADR/L (353) • PCADR/L 34N-RE (354) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-34 (351) • PCHR/L-34-JHP (351) • PCHR/L-34-JHP-MC (352) LH CDX PCHPR/L H HF Perpendicular Holders HBH Carrying Inserts with 5 Cutting OAL LF Edges for Facing, Grooving, B Lock Parting and Recessing CWN-CWX WF Right-hand shown Designation H B CWN(1) CWX(2) CDX(3) HF WF LF OAL LH HBH PCHPR/L 16-24 16.0 16.0 0.50 3.20 (4) 6.50 16.0 1.50 (5) 23.5 120.00 11.5 - PCHPR/L 20-24 20.0 20.0 0.50 3.20 (4) 6.50 20.0 1.50 (5) 28.0 120.00 11.5 - PCHPR/L 25-24 25.0 25.0 0.50 3.20 (4) 6.50 25.0 1.50 (5) 33.0 135.00 11.5 - PCHPR/L 20-34 20.0 20.0 1.40 4.00 10.00 20.0 1.90 34.0 120.00 15.0 6.0 PCHPR/L 25-34 25.0 25.0 1.40 4.00 10.00 25.0 1.90 34.0 135.00 15.0 - (1) Minimum cutting width (2) Maximum cutting width (3) For specific information, refer to insert data (4) Up to 6.2 mm width may be ordered on request (5) Valid for inserts with CW<3.2 mm For inserts, see pages: PENTA 24N-C (359) • PENTA 24N-C (full radius) (360) • PENTA 24N-C-SL (356) • PENTA 24N-J (358) • PENTA 24N-J (full radius) (359) • PENTA 24N-J-SL (356) • PENTA 24N-PF (full radius) (361) • PENTA 24N-PF/P (360) • PENTA 24N-Z (361) • PENTA 24R-C (601) • PENTA 24R-P (602) • PENTA 24R/L-DSL (357) • PENTA 24R/L-J (598) • PENTA 24R/L-Z (600) • PENTA 34F-R/L (674) • PENTA 34N-C (364) • PENTA 34N-J (365) • PENTA 34N-PB (364) • PENTA 34R/L-C (603) • PENTA 34R/L-J (604) • PENTA 34R/L-PB (605) Spare Parts Designation PCHPL 16-24 SR 16-212-01397 T-20/5 PCHPR 16-24 SR 16-212-01397L T-20/5 PCHPL 20-24 SR 16-212-01397 T-20/5 PCHPR 20-24 SR 16-212-01397L T-20/5 PCHPL 25-24 SR 16-212-01397 T-20/5 PCHPR 25-24 SR 16-212-01397L T-20/5 PCHPR/L 20-34 SR 16-212-01397 T-20/5 PCHPR/L 25-34 SR 16-212-01397 T-20/5 674 ISCAR
