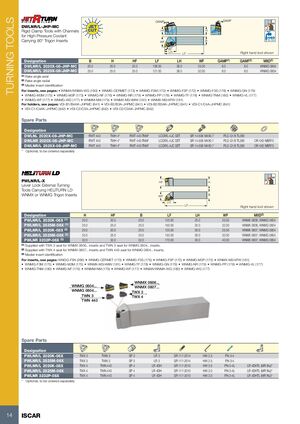

TURNING TOOLS GAMP GAMF 95° DWLNR/L-JHP-MC 95° Rigid Clamp Tools with Channels HF H for High-Pressure Coolant Carrying 80° Trigon Inserts WF B Bar Max 95˚ LH Right hand tool shown LF Designation B H HF LF LH WF GAMP(1) GAMF(2) MIID(3) DWLNR/L 2020X-08-JHP-MC 20.0 20.0 20.0 106.00 36.0 25.00 6.0 6.0 WNMG 0804 DWLNR/L 2525X-08-JHP-MC 25.0 25.0 25.0 121.00 36.0 32.00 6.0 6.0 WNMG 0804 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: • WNMA/WNMA-WG (180) • WNMG-CERMET (173) • WNMG-F3M (175) • WNMG-F3P (172) • WNMG-F3S (176) • WNMG-GN (179) • WNMG-M3M (175) • WNMG-M3P (173) • WNMG-NF (176) • WNMG-NR (179) • WNMG-PP (178) • WNMG-TF (178) • WNMG-TNM (180) • WNMG-VL (177) • WNMG-WF (177) • WNMG-WG (177) • WNMM-NM (179) • WNMX-M3/4MW (181) • WNMX-M3/4PW (181) For holders, see pages: VDI-B1/B4AK-JHPMC (841) • VDI-B2/B3A-JHPMC (841) • VDI-B2/B3AK-JHPMC (841) • VDI-C1/C4A-JHPMC (841) • VDI-C1/C4AK-JHPMC (842) • VDI-C2/C3A-JHPMC (842) • VDI-C2/C3AK-JHPMC (842) Spare Parts Designation DWLNL 2020X-08-JHP-MC RWT 443 TWH 4* RWT 443-TNM* LCGR/L-4JC SET SR 14-506 M4X0.7 PLG G1/8 TL360 DWLNR 2020X-08-JHP-MC RWT 443 TWH 4* RWT 443-TNM* LCGR/L-4JC SET SR 14-506 M4X0.7 PLG G1/8 TL360 OR 4X3 NBR70 DWLNR/L 2525X-08-JHP-MC RWT 443 TWH 4* RWT 443-TNM* LCGR/L-4JC SET SR 14-506 M4X0.7 PLG G1/8 TL360 OR 4X3 NBR70 * Optional, to be ordered separately 95° PWLNR/L-X HF H 95° Lever Lock External Turning Tools Carrying HELITURN LD WNMX or WNMG Trigon Inserts WF B LH LF Right hand tool shown Designation H HF B LF LH WF MIID(3) PWLNR/L 2020K-06X (1) 20.0 20.0 20.0 125.00 25.0 25.00 WNMX 0606, WNMG 0604 PWLNR/L 2525M-06X (1) 25.0 25.0 25.0 150.00 25.0 32.00 WNMX 0606, WNMG 0604 PWLNR/L 2020K-08X (2) 20.0 20.0 20.0 125.00 30.0 25.00 WNMX 0807, WNMG 0804 PWLNR/L 2525M-08X (2) 25.0 25.0 25.0 150.00 30.0 32.00 WNMX 0807, WNMG 0804 PWLNR 3232P-08X (2) 32.0 32.0 32.0 170.00 30.0 40.00 WNMX 0807, WNMG 0804 (1) Supplied with TWX 3 seat for WNMX 0606.. inserts and TWN 3 seat for WNMG 0604.. inserts. (2) Supplied with TWX 4 seat for WNMX 0807.. inserts and TWN 443 seat for WNMG 0804.. inserts. (3) Master insert identification For inserts, see pages: WNGG-F3N (266) • WNMG-CERMET (173) • WNMG-F3S (176) • WNMG-F3P (172) • WNMG-M3P (173) • WNMX-M3/4PW (181) • WNMG-F3M (175) • WNMG-M3M (175) • WNMX-M3/4MW (181) • WNMG-TF (178) • WNMG-GN (179) • WNMG-NR (179) • WNMG-PP (178) • WNMG-VL (177) • WNMG-TNM (180) • WNMG-NF (176) • WNMM-NM (179) • WNMG-WF (177) • WNMA/WNMA-WG (180) • WNMG-WG (177) WNMX 0606... WNMG 0604... WNMX 0807... WNMG 0804... TWX 3 TWN 3 TWX 4 TWN 443 Spare Parts Designation PWLNR/L 2020K-06X TWX 3 TWN 3 SP 3 LR 3 SR 117-2014 HW 2.5 PN 3-4 PWLNR/L 2525M-06X TWX 3 TWN 3 SP 3 LR 3 SR 117-2014 HW 2.5 PN 3-4 PWLNR/L 2020K-08X TWX 4 TWN 443 SP 4 LR 4DH SR 117-2010 HW 3.0 PN 3-4L LR 4DHTL (MR INJ)* PWLNR/L 2525M-08X TWX 4 TWN 443 SP 4 LR 4DH SR 117-2010 HW 3.0 PN 3-4L LR 4DHTL (MR INJ)* PWLNR 3232P-08X TWX 4 TWN 443 SP 4 LR 4DH SR 117-2010 HW 3.0 PN 3-4L LR 4DHTL (MR INJ)* * Optional, to be ordered separately 14 ISCAR
