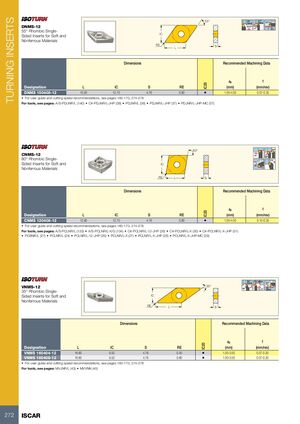

TURNING INSERTS 55° 60° 27° MAX 93º-95º MAX DNMS-12 62.5º 93° 30º MAX 55° Rhombic Single- IC Sided Inserts for Soft and Nonferrous Materials RE S L Dimensions Recommended Machining Data ap f IC20 Designation L IC S RE (mm) (mm/rev) DNMS 150408-12 15.50 12.70 4.76 0.80 • 1.00-4.00 0.07-0.35 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • C#-PDJNR/L-JHP (38) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) 80° 95º CNMS-12 75º 95º 80° Rhombic Single- 75° Sided Inserts for Soft and IC 95º Nonferrous Materials RE L S Dimensions Recommended Machining Data ap f IC20 Designation L IC S RE (mm) (mm/rev) CNMS 120408-12 12.90 12.70 4.76 0.80 • 1.00-4.00 0.10-0.35 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • A/S-PCLNR/L-X/G (134) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) 50° 70°MAX MAX 93º VNMS-12 35° 50° 93° 72.5º MAX 35° Rhombic Single- Sided Inserts for Soft and IC Nonferrous Materials RE L S Dimensions Recommended Machining Data ap f IC20 Designation L IC S RE (mm) (mm/rev) VNMS 160404-12 16.60 9.52 4.76 0.40 • 1.00-3.00 0.07-0.30 VNMS 160408-12 16.60 9.52 4.76 0.80 • 1.00-3.50 0.07-0.33 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: MVJNR/L (43) • MVVNN (45) 272 ISCAR
