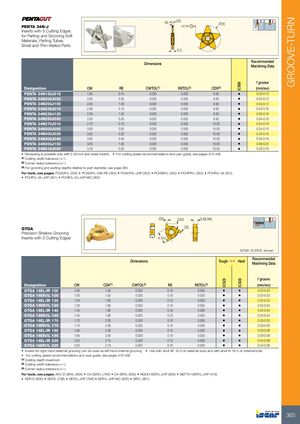

GROOVE-TURN CW RE Ø34 PENTA 34N-J ±0.04 Inserts with 5 Cutting Edges for Parting and Grooving Soft Materials, Parting Tubes, Small and Thin-Walled Parts 4.3 Recommended Dimensions Machining Data f groove IC908 Designation CW RE CWTOL(1) RETOL(2) CDX(3) (mm/rev) PENTA 34N150J015 1.50 0.15 0.020 0.002 8.50 • 0.03-0.10 PENTA 34N200J020 2.00 0.20 0.020 0.002 8.50 • 0.04-0.12 PENTA 34N200J100 2.00 1.00 0.020 0.002 8.50 • 0.05-0.12 PENTA 34N239J015 2.39 0.15 0.020 0.002 8.50 • 0.04-0.16 PENTA 34N239J120 2.39 1.20 0.020 0.002 8.50 • 0.06-0.16 PENTA 34N250J020 2.50 0.20 0.020 0.002 8.50 • 0.04-0.16 PENTA 34N270J010 2.70 0.10 0.020 0.002 10.00 • 0.04-0.16 PENTA 34N300J000 3.00 0.00 0.020 0.000 10.00 • 0.04-0.10 PENTA 34N300J020 3.00 0.20 0.020 0.002 10.00 • 0.04-0.16 PENTA 34N300J040 3.00 0.40 0.020 0.002 10.00 • 0.04-0.16 PENTA 34N300J150 3.00 1.50 0.020 0.002 10.00 • 0.06-0.20 PENTA 34N318J020 3.18 0.20 0.020 0.002 10.00 • 0.20-0.16 • Recessing is possible only with 2.39 mm and wider inserts • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) For grooving and parting depths relative to part diameter, see page 364 For tools, see pages: PCADR/L (353) • PCADR/L 34N-RE (354) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-34 (351) • PCHR/L-34-JHP (351) • PCHR/L-34-JHP-MC (352) CW CDX 3.48 Ref. RE GTGA Precision Shallow Grooving Inserts with 3 Cutting Edges 9.525 GTGA 16 ER/IL shown Recommended Dimensions Tough 1 Hard Machining Data f groove IC528 IC508 Designation CW CDX(1) CWTOL(2) RE RETOL(3) (mm/rev) GTGA 16EL/IR 100 1.00 1.55 0.020 0.10 0.030 • • 0.02-0.03 GTGA 16ER/IL 100 1.00 1.55 0.020 0.10 0.030 • • 0.02-0.03 GTGA 16EL/IR 120 1.20 1.60 0.020 0.10 0.030 • • 0.02-0.03 GTGA 16ER/IL 120 1.20 1.60 0.020 0.10 0.030 • • 0.02-0.03 GTGA 16EL/IR 140 1.40 1.80 0.020 0.10 0.030 • • 0.02-0.04 GTGA 16ER/IL 140 1.40 1.80 0.020 0.10 0.030 • • 0.02-0.04 GTGA 16EL/IR 170 1.70 2.00 0.020 0.10 0.030 • • 0.03-0.05 GTGA 16ER/IL 170 1.70 2.00 0.020 0.10 0.030 • • 0.03-0.05 GTGA 16EL/IR 195 1.95 2.00 0.020 0.10 0.030 • • 0.03-0.06 GTGA 16ER/IL 195 1.95 2.00 0.020 0.10 0.030 • • 0.03-0.06 GTGA 16EL/IR 225 2.25 2.10 0.020 0.10 0.030 • • 0.04-0.06 GTGA 16ER/IL 225 2.25 2.10 0.020 0.10 0.030 • • 0.04-0.06 • Inserts for right-hand external grooving can be used as left-hand internal grooving • Use with anvil AE 16-0 on external tools and with anvil AI 16-0 on internal tools • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting depth maximum (2) Cutting width tolerance (+/-) (3) Corner radius tolerance (+/-) For tools, see pages: AVC-D-SIR/L (805) • C#-SER/L (799) • C#-SIR/L (803) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800) • SIR/L (801) 365
