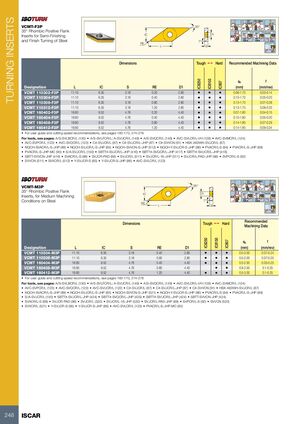

TURNING INSERTS 50° 70°MAX MAX 31º MAX VCMT-F3P 52º 35° 91° MAX 112° 93° 72.5º 35° Rhombic Positive Flank 107.5º 93º 95º IC D1 Inserts for Semi-Finishing 117.5° 25º MAX 50° 48° and Finish Turning of Steel 35º MAX MAX 7° MAX RE L S 95º Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC807 Designation L IC S RE D1 (mm) (mm/rev) VCMT 110302-F3P 11.10 6.35 3.18 0.20 2.80 • • • 0.06-1.70 0.03-0.14 VCMT 110304-F3P 11.10 6.35 3.18 0.40 2.80 • • • 0.10-1.70 0.05-0.20 VCMT 110308-F3P 11.10 6.35 3.18 0.80 2.80 • • • 0.13-1.70 0.07-0.28 VCMT 110312-F3P 11.10 6.35 3.18 1.20 2.80 • • • 0.13-1.70 0.08-0.33 VCMT 160402-F3P 16.60 9.52 4.76 0.20 4.40 • • • 0.07-1.80 0.04-0.15 VCMT 160404-F3P 16.60 9.52 4.76 0.40 4.40 • • • 0.10-1.80 0.05-0.20 VCMT 160408-F3P 16.60 9.52 4.76 0.80 4.40 • • • 0.14-1.80 0.07-0.29 VCMT 160412-F3P 16.60 9.52 4.76 1.20 4.40 • • • 0.14-1.80 0.09-0.34 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-SVLBCR/L (150) • A/S-SVLFCR/L; A-SVUCR/L (149) • A/S-SVQCR/L (149) • AVC-SVLCR/L-VH (128) • AVC-SVMCR/L (124) • AVC-SVPCR/L (123) • AVC-SVQCR/L (123) • C#-SVJCR/L (87) • C#-SVJCR/L-JHP (87) • C#-SVVCN (91) • HSK A63WH-SVJCR/L (87) • NQCH-SVACR/L-S-JHP (89) • NQCH-SVJCR/L-S-JHP (85) • NQCH-SVVCN-S-JHP (512) • NQCH-Y-SVJCR-S-JHP (86) • PVACR/L-S (84) • PVACR/L-S-JHP (89) • PVACR/L-S-JHP-MC (90) • S/A-SVJCR/L (150) • SBTT#-SVJCR/L-JHP (416) • SBTT#-SVQCR/L-JHP (417) • SBTT#-SVUCR/L-JHP (416) • SBTT-SVVCN-JHP (416) • SVACR/L-S (88) • SVJCR-PAD (88) • SVJCR/L (511) • SVJCR/L-16-JHP (511) • SVJCR/L-PAD-JHP (88) • SVPCR/L-S (92) • SVVCN (511) • SVXCR/L (512) • Y-SVJCR-S (85) • Y-SVJCR-S-JHP (86) • AVC-SVLCR/L (123) 50° 70°MAX MAX 31º MAX VCMT-M3P 35° 91° 52º MAX 112° 93° 72.5º 35° Rhombic Positive Flank IC D1 93º 95º 107.5º Inserts, for Medium Machining 117.5° 25º MAX 50° 48° Conditions on Steel 7° 35º MAX MAX MAX RE L S 95º Recommended Dimensions Tough 1 Hard Machining Data IC8250 IC8150 ap f IC807 Designation L IC S RE D1 (mm) (mm/rev) VCMT 110304-M3P 11.10 6.35 3.18 0.40 2.80 • • • 0.5-3.00 0.07-0.24 VCMT 110308-M3P 11.10 6.35 3.18 0.80 2.80 • • • 0.5-2.00 0.07-0.25 VCMT 160404-M3P 16.60 9.52 4.76 0.40 4.40 • • • 0.5-2.50 0.05-0.25 VCMT 160408-M3P 16.60 9.52 4.76 0.80 4.40 • • 0.9-2.50 0.1-0.25 VCMT 160412-M3P 16.60 9.52 4.76 1.20 4.40 • • • 0.5-3.00 0.1-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-SVLBCR/L (150) • A/S-SVLFCR/L; A-SVUCR/L (149) • A/S-SVQCR/L (149) • AVC-SVLCR/L-VH (128) • AVC-SVMCR/L (124) • AVC-SVPCR/L (123) • AVC-SVQCR/L (123) • AVC-SVUCR/L (122) • C#-SVJCR/L (87) • C#-SVJCR/L-JHP (87) • C#-SVVCN (91) • HSK A63WH-SVJCR/L (87) • NQCH-SVACR/L-S-JHP (89) • NQCH-SVJCR/L-S-JHP (85) • NQCH-SVVCN-S-JHP (521) • NQCH-Y-SVJCR-S-JHP (86) • PVACR/L-S (84) • PVACR/L-S-JHP (89) • S/A-SVJCR/L (150) • SBTT#-SVJCR/L-JHP (424) • SBTT#-SVQCR/L-JHP (425) • SBTT#-SVUCR/L-JHP (424) • SBTT-SVVCN-JHP (424) • SVACR/L-S (88) • SVJCR-PAD (88) • SVJCR/L (520) • SVJCR/L-16-JHP (520) • SVJCR/L-PAD-JHP (88) • SVPCR/L-S (92) • SVVCN (520) • SVXCR/L (521) • Y-SVJCR-S (85) • Y-SVJCR-S-JHP (86) • AVC-SVLCR/L (123) • PVACR/L-S-JHP-MC (90) 248 ISCAR
