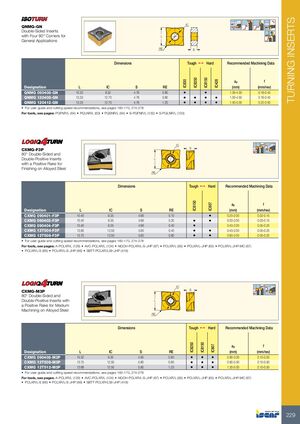

TURNING INSERTS IC 95º QNMG-GN 95° 95° 95º Double-Sided Inserts 45º with Four 80° Corners for L 45º General Applications RE S Dimensions Tough 1 Hard Recommended Machining Data IC8250 IC8150 ap f IC830 IC428 Designation L IC S RE (mm) (mm/rev) QNMG 090408-GN 10.32 9.52 4.76 0.80 • • 1.00-4.50 0.16-0.45 QNMG 120408-GN 13.33 12.70 4.76 0.80 • • • • 1.00-4.50 0.16-0.45 QNMG 120412-GN 13.25 12.70 4.76 1.20 • • • • 1.50-5.00 0.22-0.50 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: PQFNR/L (64) • PQLNR/L (63) • PQSNR/L (64) • S-PQFNR/L (132) • S-PQLNR/L (133) IC 95º S CXMG-F3P 95º 95º 80° Double-Sided and Double-Positive Inserts L with a Positive Rake for Finishing on Alloyed Steel RE Dimensions Tough 1 Hard Recommended Machining Data IC8150 ap f Designation L IC S RE IC807 (mm) (mm/rev) CXMG 090401-F3P 10.40 9.35 4.66 0.10 • 0.20-2.00 0.02-0.15 CXMG 090402-F3P 10.40 9.35 4.66 0.20 • • 0.30-2.00 0.03-0.15 CXMG 090404-F3P 10.40 9.35 4.66 0.40 • 0.40-2.00 0.05-0.25 CXMG 12T504-F3P 13.83 12.50 5.80 0.40 • • 0.40-2.00 0.05-0.25 CXMG 12T508-F3P 13.75 12.50 5.80 0.80 • • 0.80-2.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PCLXR/L (129) • AVC-PCLXR/L (124) • NQCH-PCLXR/L-S-JHP (67) • PCLXR/L (65) • PCLXR/L-JHP (65) • PCLXR/L-JHP-MC (67) • PCLXR/L-S (66) • PCLXR/L-S-JHP (66) • SBTT-PCLXR/L09-JHP (418) IC 95º S CXMG-M3P 95º 95º 80° Double-Sided and Double-Positive Inserts with L a Positive Rake for Medium Machining on Alloyed Steel RE Dimensions Tough 1 Hard Recommended Machining Data IC8250 IC8150 ap f IC807 Designation L IC S RE (mm) (mm/rev) CXMG 090408-M3P 10.32 9.35 4.65 0.80 • • • 0.80-3.00 0.10-0.50 CXMG 12T508-M3P 13.75 12.50 5.80 0.80 • • • 0.80-5.00 0.10-0.50 CXMG 12T512-M3P 13.68 12.50 5.80 1.20 • • • 1.20-5.00 0.10-0.50 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PCLXR/L (129) • AVC-PCLXR/L (124) • NQCH-PCLXR/L-S-JHP (67) • PCLXR/L (65) • PCLXR/L-JHP (65) • PCLXR/L-JHP-MC (67) • PCLXR/L-S (66) • PCLXR/L-S-JHP (66) • SBTT-PCLXR/L09-JHP (418) 229
