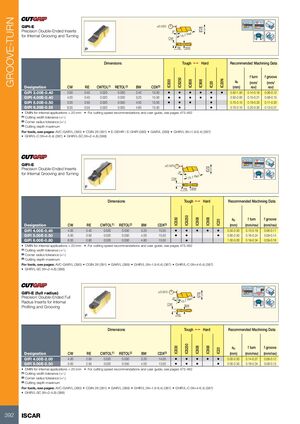

Токарные инструменты Iscar (часть 1) 2026 - страница 394

GROOVE-TURN GIPI-E ±0.025 5 Precision Double-Ended Inserts 8° Ref. for Internal Grooving and Turning 15.7 CW RE BW Dimensions Tough 1 Hard Recommended Machining Data f turn f groove IC8250 IC20N ap IC830 IC808 IC908 (mm/ (mm/ IC20 Designation CW RE CWTOL(1) RETOL(2) BW CDX(3) (mm) rev) rev) GIPI 3.00E-0.40 3.00 0.40 0.020 0.030 2.40 15.50 • • • • • • 0.50-1.50 0.14-0.18 0.06-0.12 GIPI 4.00E-0.40 4.00 0.40 0.020 0.030 3.20 15.50 • • • • • 0.50-2.00 0.15-0.21 0.08-0.15 GIPI 5.00E-0.50 5.00 0.50 0.020 0.050 4.00 15.50 • • • • 0.70-3.10 0.19-0.33 0.11-0.20 GIPI 6.35E-0.55 6.35 0.55 0.020 0.050 4.80 15.50 • • 0.70-3.10 0.23-0.30 0.13-0.21 • DMIN for internal applications = 20 mm • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: AVC-GAIR/L (390) • CGIN 26 (391) • E-GEHIR / E-GHIR (383) • GAIR/L (389) • GHIR/L (W=1.9-6.4) (387) • GHIR/L-C (W=4-6.4) (387) • GHIR/L-SC (W=2-4.8) (388) GIFI-E ±0.025 Precision Double-Ended Inserts 5 for Internal Grooving and Turning 8° Ref. CW 15.7 RE BW Dimensions Tough 1 Hard Recommended Machining Data IC8250 ap f turn f groove IC830 IC808 IC908 IC20 Designation CW RE CWTOL(1) RETOL(2) BW CDX(3) (mm) (mm/rev) (mm/rev) GIFI 4.00E-0.40 4.00 0.40 0.020 0.050 3.20 15.50 • • • • • 0.50-2.00 0.13-0.19 0.06-0.11 GIFI 5.00E-0.50 5.00 0.50 0.020 0.050 4.00 15.50 • • • 0.60-2.50 0.16-0.24 0.08-0.14 GIFI 6.00E-0.80 6.00 0.80 0.020 0.050 4.80 15.50 • 1.00-3.00 0.19-0.34 0.09-0.18 • DMIN for internal applications = 20 mm • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: AVC-GAIR/L (390) • CGIN 26 (391) • GAIR/L (389) • GHIR/L (W=1.9-6.4) (387) • GHIR/L-C (W=4-6.4) (387) • GHIR/L-SC (W=2-4.8) (388) GIFI-E (full radius) ±0.025 5 Precision Double-Ended Full 8° ef. R Radius Inserts for Internal 15.7 CW BW Profiling and Grooving RE Dimensions Tough 1 Hard Recommended Machining Data IC8250 ap f turn f groove IC830 IC808 IC908 IC20 Designation CW RE CWTOL(1) RETOL(2) BW CDX(3) (mm) (mm/rev) (mm/rev) GIFI 4.00E-2.00 4.00 2.00 0.020 0.050 3.20 14.00 • • • • • 0.00-2.00 0.14-0.27 0.06-0.12 GIFI 5.00E-2.50 5.00 2.50 0.020 0.050 4.00 13.50 • • • • 0.00-2.50 0.18-0.34 0.08-0.15 • DMIN for internal applications = 20 mm • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: AVC-GAIR/L (390) • CGIN 26 (391) • GAIR/L (389) • GHIR/L (W=1.9-6.4) (387) • GHIR/L-C (W=4-6.4) (387) • GHIR/L-SC (W=2-4.8) (388) 392 ISCAR
