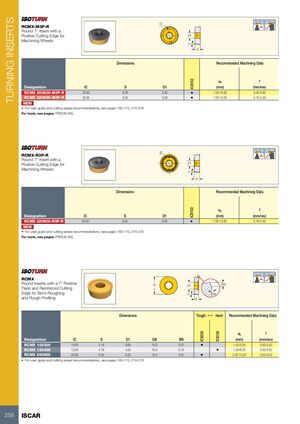

Токарные инструменты Iscar (часть 1) 2026 - страница 260

TURNING INSERTS IC RCMX-M3P-R Round 7° Insert with a Positive Cutting Edge for D1 Machining Wheels 7° S Dimensions Recommended Machining Data ap f IC8150 Designation IC S D1 (mm) (mm/rev) RCMX 200600-M3P-R 20.00 6.35 5.50 • 1.50-10.00 0.40-0.80 RCMX 320900-M3P-R 32.00 9.52 9.50 • 7.00-13.00 0.70-2.00 NEW • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: PRDCN (95) IC RCMX-R3P-R Round 7° Insert with a Positive Cutting Edge for D1 Machining Wheels 7° S Dimensions Recommended Machining Data ap f IC8150 Designation IC S D1 (mm) (mm/rev) RCMX 320900-R3P-R 32.00 9.52 9.50 • 7.00-13.00 0.70-2.00 NEW • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: PRDCN (95) RCMX Round Inserts with a 7° Positive IC D1 BN Flank and Reinforced Cutting Edge for Semi-Roughing 7° GB and Rough Profiling S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 Designation IC S D1 GB BN (mm) (mm/rev) RCMX 100300 10.00 3.18 3.60 15.0 0.01 • 1.50-5.00 0.30-0.50 RCMX 120400 12.00 4.76 4.20 15.0 0.15 • 1.50-6.00 0.30-0.50 RCMX 200600 20.00 6.35 6.50 15.0 0.01 • 2.50-10.00 0.50-0.50 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 258 ISCAR
