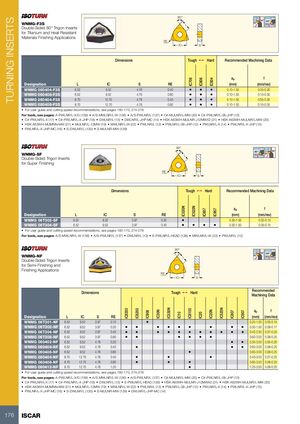

80° TURNING INSERTS 95° 95º WNMG-F3S L 95° Double-Sided 80° Trigon Inserts for Titanium and Heat Resistant Materials Finishing Applications RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC706 IC806 IC804 Designation L IC S RE (mm) (mm/rev) WNMG 060404-F3S 6.52 9.52 4.76 0.40 • • • 0.10-1.50 0.05-0.30 WNMG 060408-F3S 6.52 9.52 4.76 0.80 • • • 0.10-1.50 0.10-0.35 WNMG 080404-F3S 8.70 12.70 4.76 0.40 • • • 0.10-1.50 0.05-0.30 WNMG 080408-F3S 8.70 12.70 4.76 0.80 • • • 0.10-1.50 0.10-0.35 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PWLNR/L-X/G (138) • A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • DWLNR/L-JHP-MC (14) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) 80° 95º 95° WNMG-SF L 95° Double-Sided Trigon Inserts for Super Finishing RE IC S Dimensions Tough 1 Hard Recommended Machining Data IC530N IC520N ap f IC807 Designation L IC S RE IC907 (mm) (mm/rev) WNMG 06T302-SF 6.52 9.52 3.97 0.20 • 0.30-1.50 0.02-0.15 WNMG 06T304-SF 6.52 9.52 3.97 0.40 • • • • 0.30-1.50 0.05-0.15 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • DWLNR/L (13) • E-PWLNR/L-HEAD (138) • MWLNR/L-W (22) • PWLNR/L (12) 80° 95° 95º WNMG-NF L 95° Double-Sided Trigon Inserts for Semi-Finishing and Finishing Applications RE IC S Recommended Dimensions Tough 1 Hard Machining Data IC530N IC520N ap f IC8350 IC8250 IC8150 IC30N IC20N IC908 IC807 IC907 IC10 IC20 Designation L IC S RE (mm) (mm/rev) WNMG 06T301-NF 6.52 9.52 3.97 0.10 • 0.20-1.00 0.05-0.15 WNMG 06T302-NF 6.52 9.52 3.97 0.20 • • • • • • • • • 0.30-1.50 0.08-0.17 WNMG 06T304-NF 6.52 9.52 3.97 0.40 • • • • • • • • • • • 0.40-2.50 0.07-0.25 WNMG 06T308-NF 6.52 9.52 3.97 0.80 • • • • • • 0.60-3.00 0.08-0.25 WNMG 060402-NF 6.52 9.52 4.76 0.20 • • 0.30-3.00 0.05-0.20 WNMG 060404-NF 6.52 9.52 4.76 0.40 • • • 0.60-3.00 0.08-0.25 WNMG 060408-NF 6.52 9.52 4.76 0.80 • 0.80-3.00 0.08-0.25 WNMG 080404-NF 8.70 12.70 4.76 0.40 • • • 0.40-3.50 0.07-0.25 WNMG 080408-NF 8.70 12.70 4.76 0.80 • • • 0.80-3.50 0.08-0.25 WNMG 080412-NF 8.70 12.70 4.76 1.20 • 1.20-3.50 0.08-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PWLNR/L-X/G (138) • A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • E-PWLNR/L-HEAD (138) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 176 ISCAR
