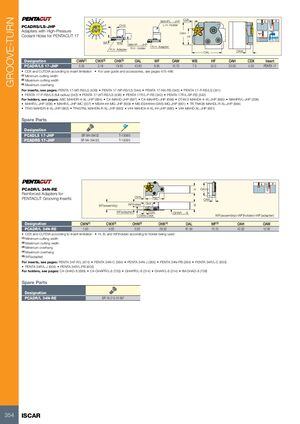

GROOVE-TURN CDX MAHPL ..-JHP OHX L.H. Holder PCADRS/LS-JHP Adapters with High-Pressure OAH Coolant Holes for PENTACUT 17 HF Bar Max WF WB MAHR ...-JHP R.H. Adapter R.H. Adapter R.H. Holder OAL OAW Designation CWN(1) CWX(2) OHX(3) OAL WF OAW WB HF OAH CDX Insert PCADR/LS 17-JHP 0.25 3.18 19.30 43.80 8.95 10.70 7.0 24.0 33.00 4.00 PENTA 17 • CDX and CUTDIA according to insert limitation • For user guide and accessories, see pages 475-496 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum overhang For inserts, see pages: PENTA 17-MT-RS/LS (438) • PENTA 17-NP-RS/LS (344) • PENTA 17-NX-RS (345) • PENTA 17-P-RS/LS (341) • PENTA 17-P-RS/LS (full radius) (343) • PENTA 17-WT-RS/LS (438) • PENTA 17R/L-P-RS (342) • PENTA 17R/L-SP-RS (342) For holders, see pages: ABC MAHDR-#-XL-JHP (884) • C#-MAHD-JHP (697) • C#-MAHPD-JHP (698) • DT##/2 MAHD#-#-XL-JHP (860) • MAHPR/L-JHP (308) • MAHR/L-JHP (306) • MAHR/L-JHP-MC (307) • MS##-##-MG-JHP (859) • MS-ES#####-GWS-MG-JHP (861) • TR TNK36 MAHDL-R-XL-JHP (884) • TR45 MAHDR-#-XL-JHP (883) • TR45TNL MAHDN-R-XL-JHP (883) • V## MAHD#-#-XL-##-JHP (880) • V## MAHD-XL-JHP (881) Spare Parts Designation PCADLS 17-JHP SR M4-39432 T-1508/5 PCADRS 17-JHP SR M4-39432L T-1508/5 PCADR/L 34N-RE H OAH Reinforced Adapters for OHN PENTACUT Grooving Inserts OAL OAW WF(holder) OHX B WF(assembly) WF(adapter) CDX GHAR ...-8 CWN-CWX WF(assembly)=WF(holder)+WF(adapter) Designation CWN(1) CWX(2) OHN(3) OHX(4) OAL WF(5) OAH OAW PCADR/L 34N-RE 1.50 4.00 5.50 29.50 61.50 10.15 42.00 12.00 • CDX and CUTDIA according to insert limitation • H, B, and WF(holder) according to holder being used (1) Minimum cutting width (2) Maximum cutting width (3) Minimum overhang (4) Maximum overhang (5) WF(adapter) For inserts, see pages: PENTA 34F-R/L (674) • PENTA 34N-C (364) • PENTA 34N-J (365) • PENTA 34N-PB (364) • PENTA 34R/L-C (603) • PENTA 34R/L-J (604) • PENTA 34R/L-PB (605) For holders, see pages: C#-GHAD-8 (699) • C#-GHAPR/L-8 (700) • GHAPR/L-8 (314) • GHAR/L-8 (314) • IM-GHAD-8 (708) Spare Parts Designation PCADR/L 34N-RE SR 16-212-01397 354 ISCAR
