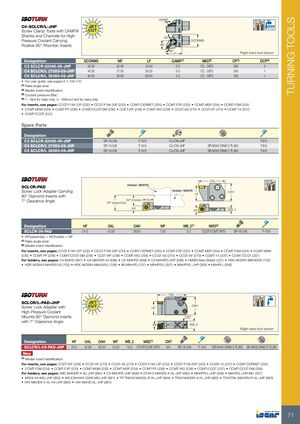

TURNING TOOLS GAMP 95º C#-SCLCR/L-JHP 95º Bar Max Screw Clamp Tools with CAMFIX Shanks and Channels for High- 55° Pressure Coolant Carrying DCONMS Positive 80° Rhombic Inserts WF 95° LF Right hand tool shown Designation DCONMS WF LF GAMP(1) MIID(2) CP(3) DCP(4) C3 SCLCR-22045-09-JHP 32.00 22.00 45.00 0.0 CC.. 09T3 300 0 C4 SCLCR/L 27050-09-JHP 40.00 27.00 50.00 0.0 CC.. 09T3 300 1 C5 SCLCR/L 35060-09-JHP 50.00 35.00 60.00 0.0 CC.. 09T3 300 1 • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Master insert identification (3) Coolant pressure (Bar) (4) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: CCGT-F1M-12P (232) • CCGT-F1M-20P (233) • CCMT-CERMET (235) • CCMT-F3P (233) • CCMT-M3P (234) • CCMT-F3M (234) • CCMT-M3M (235) • CCMT-PF (236) • CCMT/CCGT-SM (236) • CCET-WF (238) • CCMT-WG (238) • CCGT-AS (270) • CCGT-AF (270) • CCMT-14 (237) • CCMT/CCGT (237) Spare Parts Designation C3 SCLCR-22045-09-JHP SR 16-236 T-15/5 CU-CW-JHP T-8/5 C4 SCLCR/L 27050-09-JHP SR 16-236 T-15/5 CU-CW-JHP SR M5X5 DIN913 TL360 T-8/5 C5 SCLCR/L 35060-09-JHP SR 16-236 T-15/5 CU-CW-JHP SR M5X5 DIN913 TL360 T-8/5 OAL 95º Holder: MAHPL SCLCR-PAD 95º Screw Lock Adapter Carrying Holder: MAHR OAH HF 80° Diamond Inserts with 7° Clearance Angle WF (holder) 19.5 WF (assembly) WF WB_2 WF Designation HF OAL OAH WF WB_2(1) MIID(2) SCLCR-09-PAD 24.0 42.00 28.00 7.50 5.2 CCGT/CCMT 09T3 SR 16-236 T-15/5 • WF(assembly) = WF(holder) + WF (1) Rake angle axial (2) Master insert identification For inserts, see pages: CCGT-F1M-12P (232) • CCGT-F1M-20P (233) • CCMT-CERMET (235) • CCMT-F3P (233) • CCMT-M3P (234) • CCMT-F3M (234) • CCMT-M3M (235) • CCMT-PF (236) • CCMT/CCGT-SM (236) • CCET-WF (238) • CCMT-WG (238) • CCGT-AS (270) • CCGT-AF (270) • CCMT-14 (237) • CCMT/CCGT (237) For holders, see pages: C#-MAHD (697) • C#-MAHDR-45 (696) • C#-MAHPD (698) • C#-MAHPD-JHP (698) • HMSN-New Britain (537) • HSK A63WH-MAHDOR (705) • HSK A63WH-MAHDR-45 (705) • HSK A63WH-MAHUR/L (706) • IM-MAHPD (707) • MAHPR/L (307) • MAHPR/L-JHP (308) • MAHR/L (306) OAL 95º SCLCR/L-PAD-JHP 95º OAH Screw Lock Adapter with HF High-Pressure Coolant Mounts 80° Diamond Inserts CNT with 7° Clearance Angle WF WB_2 Right hand tool shown Designation HF OAL OAH WF WB_2 MIID(1) CNT SCLCR/L-09-PAD-JHP 24.0 52.80 33.00 15.00 10.0 CCGT/CCMT 09T3 M4 SR 16-236 T-15/5 SR M4X4 DIN913 TL360 SR M3X3 DIN913 TL360 New (1) Master insert identification For inserts, see pages: CCET-WF (238) • CCGT-AF (270) • CCGT-AS (270) • CCGT-F1M-12P (232) • CCGT-F1M-20P (233) • CCMT-14 (237) • CCMT-CERMET (235) • CCMT-F3M (234) • CCMT-F3P (233) • CCMT-M3M (235) • CCMT-M3P (234) • CCMT-PF (236) • CCMT-WG (238) • CCMT/CCGT (237) • CCMT/CCGT-SM (236) For holders, see pages: ABC MAHDR-#-XL-JHP (884) • C#-MAHPD-JHP (698) • DT##/2 MAHD#-#-XL-JHP (860) • MAHPR/L-JHP (308) • MAHR/L-JHP-MC (307) • MS##-##-MG-JHP (859) • MS-ES#####-GWS-MG-JHP (861) • TR TNK36 MAHDL-R-XL-JHP (884) • TR45 MAHDR-#-XL-JHP (883) • TR45TNL MAHDN-R-XL-JHP (883) • V## MAHD#-#-XL-##-JHP (880) • V## MAHD-XL-JHP (881) 71
