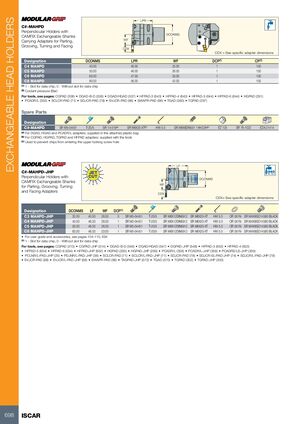

EXCHANGEABLE HEAD HOLDERS LPR C#-MAHPD Perpendicular Holders with DCONMS CAMFIX Exchangeable Shanks WF Carrying Adapters for Parting, Grooving, Turning and Facing CDX CDX = See specific adapter dimensions Designation DCONMS LPR WF DCP(1) CP(2) C4 MAHPD 40.00 46.00 25.00 1 100 C5 MAHPD 50.00 46.00 26.00 1 100 C6 MAHPD 63.00 47.00 33.00 1 100 C8 MAHPD 80.00 56.00 42.00 1 100 (1) 1 - Slot for data chip, 0 - Without slot for data chip (2) Coolant pressure (Bar) For tools, see pages: CGPAD (308) • DGAD-B-D (538) • DGAD/HGAD (537) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HGPAD (291) • PCADR/L (353) • SCLCR-PAD (71) • SDJCR-PAD (78) • SVJCR-PAD (88) • SWAPR-PAD (96) • TGAD (560) • TGPAD (297) Spare Parts Designation C#-MAHPD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 SR 76-1022 EZA-21414 (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole LF C#-MAHPD-JHP Bar Max Perpendicular Holders with DCONMS CAMFIX Exchangeable Shanks WF for Parting, Grooving, Turning and Facing Adapters CDX CDX= See specific adapter dimensions Designation DCONMS LF WF DCP(1) C3 MAHPD-JHP 32.00 40.00 26.00 0 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK C4 MAHPD-JHP 40.00 46.00 26.00 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK C5 MAHPD-JHP 50.00 46.00 26.00 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK C6 MAHPD-JHP 63.00 46.00 33.00 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK • For user guide and accessories, see pages 104-110, 694 (1) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: CGPAD (313) • CGPAD-JHP (314) • DGAD-B-D (548) • DGAD/HGAD (547) • DGPAD-JHP (548) • HFPAD-3 (653) • HFPAD-4 (653) • HFPAD-5 (654) • HFPAD-6 (654) • HFPAD-JHP (652) • HGPAD (295) • HGPAD-JHP (295) • PCADR/L (358) • PCADR/L-JHP (358) • PCADRS/LS-JHP (359) • PCLNR/L-PAD-JHP (25) • PDJNR/L-PAD-JHP (38) • SCLCR-PAD (71) • SCLCR/L-PAD-JHP (71) • SDJCR-PAD (78) • SDJCR-SL-PAD-JHP (74) • SDJCR/L-PAD-JHP (78) • SVJCR-PAD (88) • SVJCR/L-PAD-JHP (88) • SWAPR-PAD (96) • TAGPAD-JHP (572) • TGAD (570) • TGPAD (302) • TGPAD-JHP (303) 698 ISCAR
