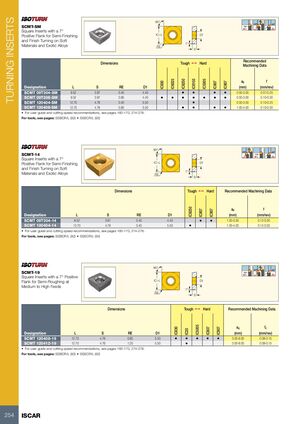

Токарные инструменты Iscar (часть 1) 2026 - страница 256

TURNING INSERTS 90° 45º 45º 45° SCMT-SM 75º Square Inserts with a 7° Positive Flank for Semi-Finishing IC=L D1 and Finish Turning on Soft 7° Materials and Exotic Alloys RE S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC8250 IC8150 IC5005 IC830 IC807 IC907 Designation L S RE D1 (mm) (mm/rev) SCMT 09T304-SM 9.52 3.97 0.40 4.40 • • • • 0.50-3.00 0.07-0.25 SCMT 09T308-SM 9.52 3.97 0.80 4.40 • • • • • • • 0.50-3.00 0.10-0.30 SCMT 120404-SM 12.70 4.76 0.40 5.50 • 0.50-3.50 0.10-0.25 SCMT 120408-SM 12.70 4.76 0.80 5.50 • • • • 1.00-4.00 0.10-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278. For tools, see pages: SSBCR/L (92) • SSSCR/L (92) 90° 45º 45º 45° SCMT-14 75º Square Inserts with a 7° Positive Flank for Semi-Finishing IC=L D1 and Finish Turning on Soft 7° Materials and Exotic Alloys RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC807 IC907 Designation L S RE D1 (mm) (mm/rev) SCMT 09T304-14 9.52 3.97 0.40 4.40 • • 1.00-3.50 0.12-0.30 SCMT 120404-14 12.70 4.76 0.40 5.50 • 1.00-4.00 0.12-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278. For tools, see pages: SSBCR/L (92) • SSSCR/L (92) 90° 45º 45º 45° SCMT-19 75º Square Inserts with a 7° Positive Flank for Semi-Roughing at IC=L D1 Medium to High Feeds 7° RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC5005 IC830 IC807 IC907 IC20 Designation L S RE D1 (mm) (mm/rev) SCMT 120408-19 12.70 4.76 0.80 5.50 • • • • • 3.00-8.00 0.08-0.15 SCMT 120412-19 12.70 4.76 1.20 5.50 • 3.00-8.00 0.08-0.15 • For user guide and cutting speed recommendations, see pages 160-170, 274-278. For tools, see pages: SSBCR/L (92) • SSSCR/L (92) 254 ISCAR
