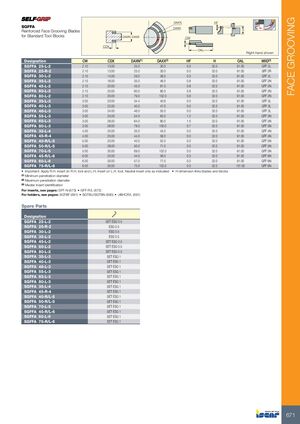

FACE GROOVING DAXN HF SGFFA DAXX Reinforced Face Grooving Blades H for Standard Tool Blocks DAXN-DAXX CW CDX OAL Right-hand shown Designation CW CDX DAXN(1) DAXX(2) HF H OAL MIID(3) SGFFA 25-L-2 2.10 13.00 25.0 30.0 0.0 32.0 91.00 GFF 2L SGFFA 25-R-2 2.10 13.00 25.0 30.0 0.0 32.0 91.00 GFF 2R SGFFA 30-L-2 2.10 14.00 29.0 36.0 0.0 32.0 91.00 GFF 2L SGFFA 35-L-2 2.10 16.00 35.0 46.0 0.8 32.0 91.00 GFF 2N SGFFA 45-L-2 2.10 20.00 45.0 61.0 0.8 32.0 91.00 GFF 2N SGFFA 60-L-2 2.10 20.00 60.0 80.0 0.8 32.0 91.00 GFF 2N SGFFA 80-L-2 2.10 20.00 79.0 102.0 0.8 32.0 91.00 GFF 2N SGFFA 35-L-3 3.00 20.00 34.4 40.6 0.0 32.0 91.00 GFF 3L SGFFA 40-L-3 3.00 22.00 40.0 47.0 0.0 32.0 91.00 GFF 3L SGFFA 46-L-3 3.00 24.00 46.0 55.0 0.0 32.0 91.00 GFF 3L SGFFA 55-L-3 3.00 25.00 54.0 65.0 1.2 32.0 91.00 GFF 3N SGFFA 65-L-3 3.00 26.00 64.0 80.0 1.0 32.0 91.00 GFF 3N SGFFA 80-L-3 3.00 28.00 79.0 100.0 0.7 32.0 91.00 GFF 3N SGFFA 35-L-4 4.00 25.00 35.0 45.0 0.0 32.0 91.00 GFF 4N SGFFA 45-R-4 4.00 25.00 44.0 58.0 0.0 32.0 91.00 GFF 4N SGFFA 40-R/L-5 5.00 25.00 40.0 52.0 0.0 32.0 91.00 GFF 5N SGFFA 50-R/L-5 5.00 28.00 50.0 71.0 0.0 32.0 91.00 GFF 5N SGFFA 70-L-5 5.00 30.00 69.0 102.0 0.0 32.0 91.00 GFF 5N SGFFA 45-R/L-6 6.00 25.00 44.0 58.0 0.0 32.0 91.00 GFF 6N SGFFA 60-L-6 6.00 30.00 57.0 77.0 0.0 32.0 91.00 GFF 6N SGFFA 75-R/L-6 6.00 35.00 75.0 102.0 0.0 32.0 101.00 GFF 6N • Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated • H dimension links blades and blocks (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Master insert identification For inserts, see pages: GFF-N (673) • GFF-R/L (673) For holders, see pages: SGTBF (691) • SGTBU/SGTBN (690) • UBHCR/L (691) Spare Parts Designation SGFFA 25-L-2 SET ESG 0.5 SGFFA 25-R-2 ESG 0.5 SGFFA 30-L-2 ESG 0.5 SGFFA 35-L-2 ESG 0.5 SGFFA 45-L-2 SET ESG 0.5 SGFFA 60-L-2 SET ESG 0.5 SGFFA 80-L-2 SET ESG 0.5 SGFFA 35-L-3 SET ESG 1 SGFFA 40-L-3 SET ESG 1 SGFFA 46-L-3 SET ESG 1 SGFFA 55-L-3 SET ESG 1 SGFFA 65-L-3 SET ESG 1 SGFFA 80-L-3 SET ESG 1 SGFFA 35-L-4 SET ESG 1 SGFFA 45-R-4 SET ESG 1 SGFFA 40-R/L-5 SET ESG 1 SGFFA 50-R/L-5 SET ESG 1 SGFFA 70-L-5 SET ESG 1 SGFFA 45-R/L-6 SET ESG 1 SGFFA 60-L-6 SET ESG 1 SGFFA 75-R/L-6 SET ESG 1 671
