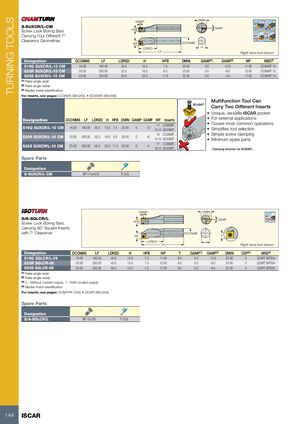

TURNING TOOLS GAMP DMIN 45º S-SUXCR/L-CM GAMF 90º Screw Lock Boring Bars HFB Carrying Four Different 7° 95º 95º Clearance Geometries DCONMS WF LDRED H LF Right hand tool shown Designation DCONMS LF LDRED H HFB DMIN GAMP(1) GAMF(2) WF MIID(3) S16Q SUXCR/L-10 CM 16.00 180.00 45.0 15.0 7.5 20.00 0.0 -12.0 11.00 CC95MT 10.. S20R SUXCR/L-10 CM 20.00 200.00 52.0 18.0 9.0 25.00 0.0 -6.0 13.00 CC95MT 10.. S25S SUXCR/L-10 CM 25.00 250.00 55.0 23.0 11.5 32.00 0.0 -4.0 17.00 CC95MT 10.. (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CC95MT-SM (265) • SC45MT-SM (266) Multifunction Tool Can SC45MT Carry Two Different Inserts • Unique, versatile ISCAR pocket Designation DCONMS LF LDRED H HFB DMIN GAMP GAMF WF Inserts • For external applications 11 CC95MT��� • Covers most common operations S16Q SUXCR/L-10 CM 16�00 180�00 45�0 15�0 7�5 20�00 0 -12 12�14 SC45MT��� • Simplifies tool selection 13 CC95MT��� • Simple screw clamping S20R SUXCR/L-10 CM 20�00 200�00 52�0 18�0 9�0 25�00 0 -6 14�14 SC45MT��� • Minimum spare parts 17 CC95MT��� S25S SUXCR/L-10 CM 25�00 250�00 55�0 23�0 11�5 32�00 0 -4 18�14 SC45MT��� Clamping direction for SC45MT... Spare Parts Designation S-SUXCR/L-CM SR 14-544/S T-15/5 GAMP DMIN 95º S/A-SQLCR/L GAMF HFB Screw Lock Boring Bars Carrying 80° Square Inserts with 7° Clearance DCONMS WF T LDRED H LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF T GAMP(1) GAMF(2) DMIN CSP(3) MIID(4) S16Q SQLCR/L-09 16.00 180.00 45.0 15.0 7.5 11.00 8.5 0.0 -12.0 20.00 0 QCMT 09T304 S20R SQLCR-09 20.00 200.00 45.0 15.0 7.5 13.00 8.5 0.0 -6.0 25.00 0 QCMT 09T304 S25S SQLCR-09 25.00 250.00 55.0 15.0 7.5 17.00 8.5 0.0 -6.0 32.00 0 QCMT 09T304 (1) Rake angle axial (2) Rake angle radial (3) 0 - Without coolant supply, 1 - With coolant supply (4) Master insert identification For inserts, see pages: QCMT-PF (259) • QCMT-SM (259) Spare Parts Designation S/A-SQLCR/L SR 16-236 T-15/5 144 ISCAR
