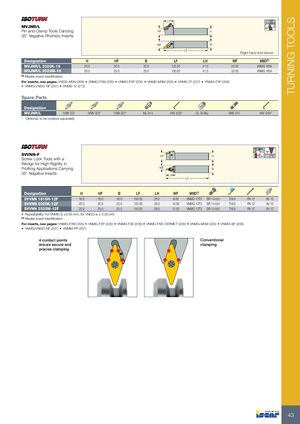

TURNING TOOLS LH 50° MAX MVJNR/L 93° Pin and Clamp Tools Carrying HF H 35° Negative Rhombic Inserts WF B LF Right hand tool shown Designation H HF B LF LH WF MIID(1) MVJNR/L 2020K-16 20.0 20.0 20.0 125.00 41.0 25.00 VNMG 1604 MVJNR/L 2525M-16 25.0 25.0 25.0 150.00 41.0 32.00 VNMG 1604 (1) Master insert identification For inserts, see pages: VNGG-M3N (268) • VNMG-F3M (205) • VNMG-F3P (205) • VNMG-M3M (205) • VNMG-TF (207) • YNMG-F3P (208) • VNMG/VNGG-NF (207) • VNMS-12 (272) Spare Parts Designation MVJNR/L IVSN 322 IVSN 323* IYSN 322* NL 34-L HW 5/32" CL 30-INJ XNS 510 HW 5/64" * Optional, to be ordered separately 70°MAX SVVNN-F HF H 72.5º Screw Lock Tools with a Wedge for High Rigidity in Profiling Applications Carrying WF B 35° Negative Inserts LH LF Designation H HF B LF LH WF MIID(1) SVVNN 1616H-12F 16.0 16.0 16.0 100.00 26.0 8.00 VNMG 12T3 SR 14-551 T-9/5 PA 12 AV 12 SVVNN 2020K-12F 20.0 20.0 20.0 125.00 26.0 10.00 VNMG 12T3 SR 14-551 T-9/5 PA 12 AV 12 SVVNN 2525M-12F 25.0 25.0 25.0 150.00 26.0 12.50 VNMG 12T3 SR 14-551 T-9/5 PA 12 AV 12 • Repeatability: for VNMG is ±0.06 mm, for VNGG is ± 0.02 mm (1) Master insert identification For inserts, see pages: VNMG-F3M (205) • VNMG-F3P (205) • VNMG-F3S (206) • VNMG-FNF-CERMET (206) • VNMG-M3M (205) • VNMG-SF (206) • VNMG/VNGG-NF (207) • VNMM-PP (207) 4 contact points Conventional ensure secure and clamping precise clamping 43
