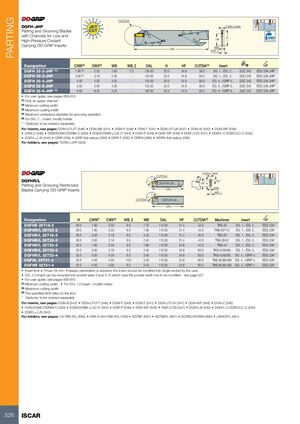

Токарные инструменты Iscar (часть 1) 2026 - страница 528

PARTING CUTDIA DGFH-JHP CWN-CWX Parting and Grooving Blades Max. Min. with Channels for Low and H High-Pressure Coolant HF Bar Max Min. Max. Carrying DO-GRIP Inserts WB OAL WB_2 Designation CWN(2) CWX(3) WB WB_2 OAL H HF CUTDIA(4) Insert DGFH 32-2-JHP (1) 1.90 (5) 2.50 1.80 2.5 150.00 32.0 24.8 39.0 DG. 1.../DG. 2... SGC 340 EDG 33A-JHP* DGFH 32-3-JHP 3.00 (5) 3.18 2.50 - 152.00 32.0 24.8 90.0 DG. 1.../DG. 3... SGC 340 EDG 33A-JHP* DGFH 32-4-JHP 4.00 4.00 3.20 - 152.00 32.0 24.9 90.0 DG. 4.../GRIP 4... SGC 340 EDG 33A-JHP* DGFH 32-5-JHP 5.00 5.00 4.00 - 152.00 32.0 24.9 90.0 DG. 5.../GRIP 5... SGC 340 EDG 33A-JHP* DGFH 32-6-JHP (1) 6.00 6.35 5.20 - 160.00 32.0 24.9 90.0 DG. 6.../GRIP 6... SGC 340 EDG 33A-JHP* • For user guide, see pages 606-615 (1) Only an upper channel (2) Minimum cutting width (3) Maximum cutting width (4) Maximum workpiece diameter for grooving operation (5) For DG. 1... insert, modify holder * Optional, to be ordered separately For inserts, see pages: DGN-LF/LFT (546) • DGN-MF (541) • DGN-P (548) • DGN-T (541) • DGN-UT/UA (547) • DGN-W (540) • DGN-WP (549) • DGN-Z (546) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGR-P (548) • DGR-WP (549) • DGR-Z/ZS (547) • DGR/L-C DGRC/LC-C (540) • DGR/L-J/JS (545) • GRIP (294) • GRIP (full radius) (295) • GRIP-T (295) • GRIPA (296) • GRIPA (full radius) (296) For holders, see pages: TGTBU-JHP (559) CWN-CWX CUTDIA DGFHR/L 15° DGFHR-26... HF H Parting and Grooving Reinforced OAL WB Blades Carrying DO-GRIP Inserts WB_2 CUTDIA DGFHR-32... OAL Designation H CWN(1) CWX(2) WB_2 WB OAL HF CUTDIA(3) Machines Insert DGFHR 26T16-2 26.0 1.90 2.50 8.0 1.70 110.00 21.4 42.0 TNS-30 DG. 1.../DG. 2.. EDG 23A* DGFHR/L 26T23-2 26.0 1.90 2.50 8.0 1.60 110.00 21.4 42.0 TNS-30/112 DG. 1.../DG. 2.. EDG 23A* DGFHR/L 26T16-3 26.0 3.00 3.18 8.0 2.40 110.00 21.4 30.0 TNS-30 DG. 1.../DG. 3.. EDG 23A* DGFHR/L 26T23-3 26.0 3.00 3.18 8.0 2.40 110.00 21.4 42.0 TNS-30/42 DG. 1.../DG. 3.. EDG 23A* DGFHR/L 32T22-2 32.0 1.90 2.50 8.0 1.60 110.00 24.8 42.0 TNS-42 DG. 1.../DG. 2.. EDG 33A* DGFHR/L 32T33-3 32.0 3.00 3.18 8.0 2.40 110.00 24.8 60.0 TNS-42/60/65 DG. 1.../DG. 3.. EDG 33A* DGFHR/L 32T33-4 32.0 4.00 4.00 8.0 3.40 110.00 24.8 60.0 TNS-42/60/65 DG. 4.../GRIP 4.. EDG 33A* DGFHL 32T41-4 32.0 4.00 4.00 10.0 3.40 110.00 24.8 80.0 TNS-65/80/480 DG. 4.../GRIP 4.. EDG 33A* DGFHR 32T41-4 32.0 4.00 4.00 8.0 3.40 110.00 24.8 80.0 TNS-65/80/480 DG. 4.../GRIP 4.. EDG 33A* • Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user. • DG..1.0 insert can be mounted into pocket sizes 2 and 3. in which case the pocket width has to be modified - see page 537 • For user guide, see pages 606-615 (1) Minimum cutting width • For DG: 1.0 insert - modify holder (2) Maximum cutting width (3) The specified limit refers to the tool * Optional, to be ordered separately For inserts, see pages: DGN-B (542) • DGN-LF/LFT (546) • DGN-P (548) • DGN-T (541) • DGN-UT/UA (547) • DGN-WP (549) • DGN-Z (546) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGR-P (548) • DGR-WP (549) • DGR-Z/ZS (547) • DGR/L-B (542) • DGR/L-C DGRC/LC-C (540) • DGR/L-J/JS (545) For holders, see pages: C#-TBK-R/L (695) • HSK A-WH-TBK-R/L (706) • SGTBF (691) • SGTBR/L (691) • SGTBU/SGTBN (690) • UBHCR/L (691) 526 ISCAR
