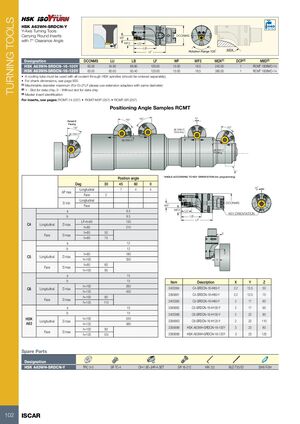

Токарные инструменты Iscar (часть 1) 2026 - страница 104

TURNING TOOLS HSK A63WH-SRDCN-Y Bar Max Y-Axis Turning Tools Carrying Round Inserts WF DCONMS with 7° Clearance Angle WF2 LU LB MDX LF Rotation Range 120˚ Designation DCONMS LU LB LF WF WF2 MDX(1) DCP(2) MIID(3) HSK A63WH-SRDCN-16-100Y 63.00 34.90 69.80 100.00 15.00 16.5 240.00 1 RCMT 1606MO-14 HSK A63WH-SRDCN-16-125Y 63.00 60.00 93.40 125.00 15.00 16.5 380.00 1 RCMT 1606MO-14 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • For shank dimensions, see page 835 (1) Machinable diameter maximum (For D>2*LF please use extension adapters with same diameter) (2) 1 - Slot for data chip, 0 - Without slot for data chip (3) Master insert identification For inserts, see pages: RCMT-14 (257) • RCMT-M3P (257) • RCMT-SR (257) Positioning Angle Samples RCMT *60˚ *60˚ *0˚ Detail D Facing *30˚ *45˚ ap max=4 Grooving ap max=2 ap max=4 ap max=7 Profiling D *ANGLE ACCORDING TO KEY ORIENTATION (for programming) Position angle Deg 30 45 60 0 Longitudinal 7 4 4 *0˚ AP max Face 2 Longitudinal D min DCONMS Face WF a 9�5 WF2 LU KEY ORIENTATION b 9�5 LB LF LF=h=65 130 C4 Longitudinal D max h=80 210 h=65 50 X Face D max h=80 75 a 12 b 12 h=80 180 Z C5 Longitudinal D max h=100 350 Y h=80 60 Face D max h=100 95 a 15 b 15 Item Description X Y Z h=100 260 C6 Longitudinal D max 3400364 C4-SRDCN-16-H65-Y 2�2 13�5 50 h=125 450 3395661 C4-SRDCN-16-H80-Y 2�2 13�5 75 h=100 80 Face D max 3400365 C5-SRDCN-16-H80-Y 2 17 60 h=125 110 a 15 3395662 C5-SRDCN-16-H100-Y 2 17 95 b 15 3400366 C6-SRDCN-16-H100-Y 2 22 80 HSK h=100 240 Longitudinal D max 3395663 C6-SRDCN-16-H125-Y 2 22 110 A63 h=125 380 h=100 80 3395689 HSK A63WH-SRDCN-16-100Y 3 23 80 Face D max h=125 125 3395688 HSK A63WH-SRDCN-16-125Y 3 23 125 Spare Parts Designation HSK A63WH-SRDCN-Y TRC 5-0 SR TC-4 CH-1.9D-JHP-A SET SR 16-212 HW 3.0 BLD T20/S7 SW6-T-SH 102 ISCAR
