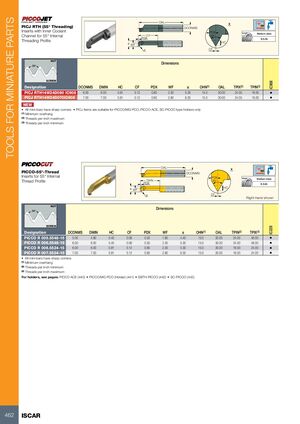

TOOLS FOR MINIATURE PARTS OAL X PICJ RTH (55° Threading) DCONMS Inserts with Inner Coolant PDX Medium class Channel for 55° Internal LU 55° PDX B.S.84 Threading Profile HC a WF x CF NUT Dimensions 55° SCREW IC908 Designation DCONMS DMIN HC CF PDX WF a OHN(1) OAL TPIX(2) TPIN(3) PICJ RTH14W24D060 IC908 6.00 6.00 0.81 0.12 0.80 2.30 5.30 15.0 30.00 24.00 16.00 • PICJ RTH14W24D070IC908 7.00 7.00 0.81 0.12 0.80 2.80 6.30 15.0 30.00 24.00 16.00 • NEW • All mini-bars have sharp corners • PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only (1) Minimum overhang (2) Threads per inch maximum (3) Threads per inch minimum OAL X PICCO-55°-Thread DCONMS Inserts for 55° Internal PDX Medium class Thread Profile OHN 55° PDX B.S.84 a WF HC x CF Right-hand shown NUT Dimensions 55° SCREW IC228 Designation DCONMS DMIN HC CF PDX WF a OHN(1) OAL TPIN(2) TPIX(3) PICCO R 005.5548-15 5.00 4.80 0.40 0.06 0.50 1.90 4.40 15.0 30.00 24.00 48.00 • PICCO R 006.5548-15 6.00 6.00 0.40 0.06 0.50 2.30 5.30 15.0 30.00 24.00 48.00 • PICCO R 006.5524-15 6.00 6.00 0.81 0.12 0.80 2.30 5.30 15.0 30.00 16.00 24.00 • PICCO R 007.5524-15 7.00 7.00 0.81 0.12 0.80 2.80 6.30 15.0 30.00 16.00 24.00 • • All mini-bars have sharp corners (1) Minimum overhang (2) Threads per inch minimum (3) Threads per inch maximum For holders, see pages: PICCO ACE (440) • PICCO/MG PCO (Holder) (441) • SBTH-PICCO (442) • SC-PICCO (442) 462 ISCAR
