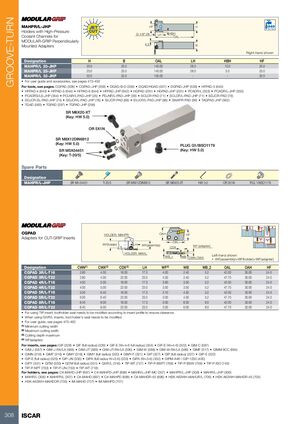

Токарные инструменты Iscar (часть 1) 2026 - страница 310

GROOVE-TURN MAHPR/L-JHP HF H Bar Max Holders with High-Pressure HBH G 1/8"-28 LH Coolant Channels for OAL MODULAR-GRIP Perpendicularly 4.5 B Mounted Adapters Right-hand shown Designation H B OAL LH HBH HF MAHPR/L 20-JHP 20.0 20.0 140.00 28.0 10.0 20.0 MAHPR/L 25-JHP 25.0 25.0 140.00 28.0 5.0 25.0 MAHPR/L 32-JHP 32.0 32.0 150.00 - - 32.0 • For user guide and accessories, see pages 475-492 For tools, see pages: CGPAD (308) • CGPAD-JHP (309) • DGAD-B-D (538) • DGAD/HGAD (537) • DGPAD-JHP (538) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HFPAD-JHP (642) • HGPAD (291) • HGPAD-JHP (291) • PCADR/L (353) • PCADR/L-JHP (353) • PCADRS/LS-JHP (354) • PCLNR/L-PAD-JHP (25) • PDJNR/L-PAD-JHP (38) • SCLCR-PAD (71) • SCLCR/L-PAD-JHP (71) • SDJCR-PAD (78) • SDJCR-SL-PAD-JHP (74) • SDJCR/L-PAD-JHP (78) • SVJCR-PAD (88) • SVJCR/L-PAD-JHP (88) • SWAPR-PAD (96) • TAGPAD-JHP (562) • TGAD (560) • TGPAD (297) • TGPAD-JHP (298) SR M6X20-XT (Key: HW 5.0) OR 5X1N SR M6X12DIN6912 (Key: HW 5.0) PLUG G1/8ISO1179 SR M5X04451 (Key: HW 5.0) (Key: T-20/5) Spare Parts Designation MAHPR/L-JHP SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N PLG 1/8ISO1179 CGPAD HOLDER: MAHPR OAH HF Adapters for CUT-GRIP Inserts OAL WF(holder) LH WF(assembly) CDX WF (adapter) HOLDER: MAHL WB_2 WB CWN-CWX Left-hand shown • WF(assembly)=WF(holder)+WF(adapter) Designation CWN(1) CWX(2) CDX(3) LH WF(4) WB WB_2 OAL OAH HF CGPAD 3R/L-T16 2.80 4.00 16.00 17.3 4.00 2.40 5.2 42.00 30.00 24.0 CGPAD 3R/L-T22 2.80 4.00 22.00 23.0 4.00 2.40 5.2 47.70 30.00 24.0 CGPAD 4R/L-T16 4.00 5.00 16.00 17.3 3.60 3.50 5.2 42.00 30.00 24.0 CGPAD 4R/L-T22 4.00 5.00 22.00 23.0 3.50 3.50 5.2 47.70 30.00 24.0 CGPAD 5R/L-T16 5.00 6.40 16.00 17.3 3.10 4.50 5.2 42.00 30.00 24.0 CGPAD 5R/L-T22 5.00 6.40 22.00 23.0 3.00 4.50 5.2 47.70 30.00 24.0 CGPAD 8R/L-T16 6.40 8.00 16.00 17.3 3.00 6.00 6.0 42.00 30.00 24.0 CGPAD 8R/L-T22 6.40 8.00 22.00 23.0 3.00 6.00 6.0 47.70 30.00 24.0 • For using TIP insert, toolholder seat needs to be modified according to insert profile to ensure clearance • When using GIVR/L inserts, tool holder’s seat needs to be modified • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) WF(adapter) For inserts, see pages: GIF (328) • GIF (full radius) (329) • GIF-E (W=4-6 full radius) (324) • GIF-E (W=4-6) (322) • GIM-C (587) • GIM-J (587) • GIM-J-RA/LA (588) • GIM-UT (589) • GIM-UT-RA/LA (590) • GIM-W (588) • GIM-W-RA/LA (589) • GIMF (317) • GIMM 8CC (664) • GIMN (319) • GIMT (316) • GIMY (318) • GIMY (full radius) (320) • GIMY-F (321) • GIP (327) • GIP (full radius) (327) • GIP-E (323) • GIP-E (full radius) (325) • GIP-UN (335) • GIPA (full radius W=3-6) (333) • GIPA (W=3-6) (332) • GIPM-A46 / GIP-1250 (430) • GIPY (331) • GITM (330) • GITM (full radius) (331) • GIVR/L (316) • TIP-MT (727) • TIP-P-BSPT (768) • TIP-P-BSW (759) • TIP-P-ISO (743) • TIP-P-NPT (763) • TIP-P-UN (753) • TIP-WT (718) For holders, see pages: C#-MAHD-JHP (697) • C#-MAHPD-JHP (698) • MAHR/L-JHP-MC (307) • MAHPR/L-JHP (308) • MAHR/L-JHP (306) • MAHR/L (306) • MAHPR/L (307) • C#-MAHD (697) • C#-MAHPD (698) • C#-MAHDR-45 (696) • HSK A63WH-MAHUR/L (706) • HSK A63WH-MAHDR-45 (705) • HSK A63WH-MAHDOR (705) • IM-MAHD (707) • IM-MAHPD (707) 308 ISCAR
