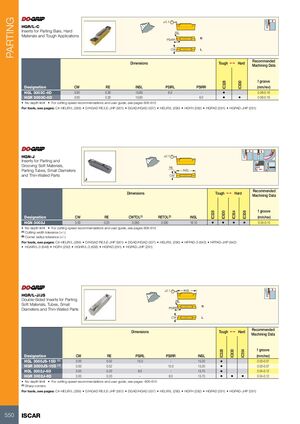

PARTING ±0.1 HGR/L-C Inserts for Parting Bars, Hard RE Materials and Tough Applications PSIRR R CW L Recommended Dimensions Tough 1 Hard Machining Data f groove IC328 IC830 Designation CW RE INSL PSIRL PSIRR (mm/rev) HGL 3003C-6D 3.00 0.30 15.60 6.0 - • 0.06-0.16 HGR 3003C-6D 3.00 0.30 15.60 - 6.0 • • 0.06-0.16 • No depth limit • For cutting speed recommendations and user guide, see pages 606-615 For tools, see pages: C#-HELIR/L (289) • D/HGAD RE/LE-JHP (561) • DGAD/HGAD (537) • HELIR/L (290) • HGFH (292) • HGPAD (291) • HGPAD-JHP (291) HGN-J ±0.1 Inserts for Parting and Grooving Soft Materials, RE Parting Tubes, Small Diameters INSL and Thin-Walled Parts CW Recommended Dimensions Tough 1 Hard Machining Data IC328 f groove IC830 IC354 IC308 Designation CW RE CWTOL(1) RETOL(2) INSL (mm/rev) HGN 3002J 3.00 0.20 0.050 0.030 16.10 • • • • 0.04-0.15 • No depth limit • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: C#-HELIR/L (289) • D/HGAD RE/LE-JHP (561) • DGAD/HGAD (537) • HELIR/L (290) • HFPAD-3 (643) • HFPAD-JHP (642) • HGAIR/L-3 (648) • HGFH (292) • HGHR/L-3 (638) • HGPAD (291) • HGPAD-JHP (291) ±0.1 lNSL HGR/L-J/JS Double-Sided Inserts for Parting RE Soft Materials, Tubes, Small R Diameters and Thin-Walled Parts PSIRR CW L Recommended Dimensions Tough 1 Hard Machining Data f groove IC328 IC830 IC354 Designation CW RE PSIRL PSIRR INSL (mm/rev) HGL 3000JS-15D (1) 3.00 0.02 15.0 - 15.20 • 0.03-0.07 HGR 3000JS-15D (1) 3.00 0.02 - 15.0 15.20 • 0.03-0.07 HGL 3002J-6D 3.00 0.20 6.0 - 15.70 • 0.04-0.12 HGR 3002J-6D 3.00 0.20 - 6.0 15.70 • • • 0.04-0.12 • No depth limit • For cutting speed recommendations and user guide, see pages 606-615 (1) Sharp corners For tools, see pages: C#-HELIR/L (289) • D/HGAD RE/LE-JHP (561) • DGAD/HGAD (537) • HELIR/L (290) • HGFH (292) • HGPAD (291) • HGPAD-JHP (291) 550 ISCAR
