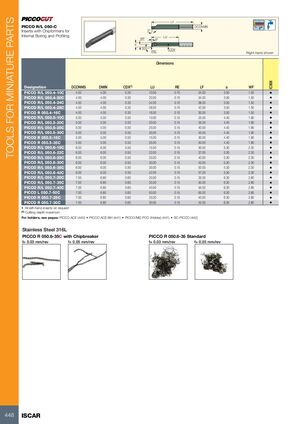

TOOLS FOR MINIATURE PARTS LF PICCO R/L 050-C DCONMS Inserts with Chipformers for 5° Internal Boring and Profiling LU WF 8° a 20° CDX RE Right-hand shown Dimensions IC908 Designation DCONMS DMIN CDX(1) LU RE LF a WF PICCO R/L 050.4-10C 4.00 4.00 0.30 10.00 0.10 24.00 3.50 1.50 • PICCO R/L 050.4-20C 4.00 4.00 0.30 20.00 0.10 34.00 3.50 1.50 • PICCO R/L 050.4-24C 4.00 4.00 0.30 24.00 0.10 38.00 3.50 1.50 • PICCO R/L 050.4-28C 4.00 4.00 0.30 28.00 0.10 42.00 3.50 1.50 • PICCO R 050.4-16C 4.00 4.00 0.30 16.00 0.10 30.00 3.50 1.50 • PICCO R/L 050.5-10C 5.00 5.00 0.50 10.00 0.15 25.00 4.40 1.90 • PICCO R/L 050.5-20C 5.00 5.00 0.50 20.00 0.15 35.00 4.40 1.90 • PICCO R/L 050.5-25C 5.00 5.00 0.50 25.00 0.15 40.00 4.40 1.90 • PICCO R/L 050.5-30C 5.00 5.00 0.50 30.00 0.15 45.00 4.40 1.90 • PICCO R 050.5-15C 5.00 5.00 0.50 15.00 0.15 30.00 4.40 1.90 • PICCO R 050.5-35C 5.00 5.00 0.50 35.00 0.15 50.00 4.40 1.90 • PICCO R/L 050.6-15C 6.00 6.00 0.50 15.00 0.15 30.00 5.30 2.30 • PICCO R/L 050.6-22C 6.00 6.00 0.50 22.00 0.15 37.00 5.30 2.30 • PICCO R/L 050.6-25C 6.00 6.00 0.50 25.00 0.15 40.00 5.30 2.30 • PICCO R/L 050.6-30C 6.00 6.00 0.50 30.00 0.15 45.00 5.30 2.30 • PICCO R/L 050.6-35C 6.00 6.00 0.50 35.00 0.15 50.00 5.30 2.30 • PICCO R/L 050.6-42C 6.00 6.00 0.50 42.00 0.15 57.00 5.30 2.30 • PICCO R/L 050.7-20C 7.00 6.80 0.60 20.00 0.15 35.00 6.30 2.80 • PICCO R/L 050.7-35C 7.00 6.80 0.60 35.00 0.15 50.00 6.30 2.80 • PICCO R/L 050.7-40C 7.00 6.80 0.60 40.00 0.15 55.00 6.30 2.80 • PICCO L 050.7-50C 7.00 6.80 0.60 50.00 0.15 65.00 6.30 2.80 • PICCO R 050.7-25C 7.00 6.80 0.60 25.00 0.15 40.00 6.30 2.80 • PICCO R 050.7-30C 7.00 6.80 0.60 30.00 0.15 45.00 6.30 2.80 • • All left-hand inserts on request (1) Cutting depth maximum For holders, see pages: PICCO ACE (440) • PICCO ACE-BH (441) • PICCO/MG PCO (Holder) (441) • SC-PICCO (442) Stainless Steel 316L PICCO R 050.6-35C with Chipbreaker PICCO R 050.6-35 Standard f= 0.03 mm/rev f= 0.05 mm/rev f= 0.03 mm/rev f= 0.05 mm/rev 448 ISCAR
