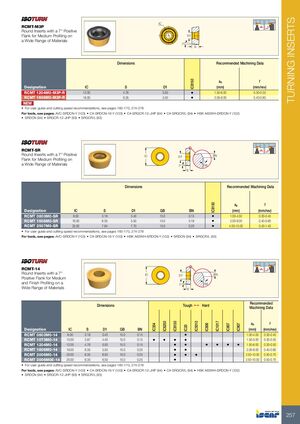

Токарные инструменты Iscar (часть 1) 2026 - страница 259

TURNING INSERTS IC RCMT-M3P Round Inserts with a 7° Positive Flank for Medium Profiling on D1 a Wide Range of Materials 7° S Dimensions Recommended Machining Data ap f IC8150 Designation IC S D1 (mm) (mm/rev) RCMT 1204M0-M3P-R 12.00 4.76 5.50 • 1.50-6.00 0.30-0.55 RCMT 1606M0-M3P-R 16.00 6.35 5.50 • 2.00-8.00 0.40-0.80 NEW • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: AVC-SRDCN-Y (103) • C#-SRDCN-16-Y (103) • C#-SRGCR-12-JHP (94) • C#-SRGCR/L (94) • HSK A63WH-SRDCN-Y (102) • SRDCN (94) • SRGCR-12-JHP (93) • SRGCR/L (93) RCMT-SR Round Inserts with a 7° Positive IC D1 BN Flank for Medium Profiling on a Wide Range of Materials 7° GB S Dimensions Recommended Machining Data ap f IC8150 Designation IC S D1 GB BN (mm) (mm/rev) RCMT 0803M0-SR 8.00 3.18 3.40 15.0 0.15 • 1.00-4.50 0.30-0.45 RCMT 1606M0-SR 16.00 6.35 5.50 15.0 0.18 • 2.00-8.00 0.40-0.60 RCMT 2507M0-SR 25.00 7.94 7.70 15.0 0.20 • 4.00-10.00 0.40-1.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: AVC-SRDCN-Y (103) • C#-SRDCN-16-Y (103) • HSK A63WH-SRDCN-Y (102) • SRDCN (94) • SRGCR/L (93) RCMT-14 Round Inserts with a 7° IC D1 BN Positive Flank for Medium and Finish Profiling on a 7° GB Wide Range of Materials S Recommended Dimensions Tough 1 Hard Machining Data ap f IC8250 IC8150 IC5010 IC1017 IC354 IC806 IC807 IC907 IC20 Designation IC S D1 GB BN (mm) (mm/rev) RCMT 0803M0-14 8.00 3.18 3.40 15.0 0.15 • 1.00-4.00 0.30-0.45 RCMT 10T3M0-14 10.00 3.97 4.40 15.0 0.15 • • • • 1.50-5.00 0.30-0.50 RCMT 1204M0-14 12.00 4.76 5.50 15.0 0.15 • • • • • • 1.50-6.00 0.30-0.50 RCMT 1606M0-14 16.00 6.35 5.50 15.0 0.25 • • 2.00-8.00 0.40-0.60 RCMT 2006M0-14 20.00 6.35 6.50 15.0 0.25 • • • 2.50-10.00 0.50-0.70 RCMT 2006M0E-14 20.00 6.35 6.50 15.0 0.25 • 2.50-10.00 0.50-0.70 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: AVC-SRDCN-Y (103) • C#-SRDCN-16-Y (103) • C#-SRGCR-12-JHP (94) • C#-SRGCR/L (94) • HSK A63WH-SRDCN-Y (102) • SRDCN (94) • SRGCR-12-JHP (93) • SRGCR/L (93) 257
