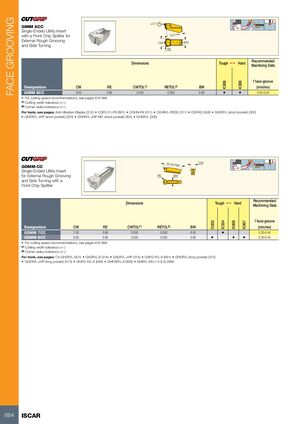

FACE GROOVING ±0.1 GIMM 8CC Single-Ended Utility Insert . with a Front Chip Splitter for 15.3 Ref External Rough Grooving CW BW and Side Turning RE Recommended Dimensions Tough 1 Hard Machining Data f face-groove IC808 IC908 Designation CW RE CWTOL(1) RETOL(2) BW (mm/rev) GIMM 8CC 8.00 0.80 0.050 0.050 5.80 • • 0.30-0.45 • For cutting speed recommendations, see pages 676-688 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: Anti-Vibration Blades (312) • CGFG 51-P8 (661) • CGHN-P8 (311) • CGHR/L-P8DG (311) • CGPAD (308) • GHDR/L (short pocket) (302) • GHDR/L-JHP (short pocket) (303) • GHDR/L-JHP-MC (short pocket) (304) • GHGR/L (305) 29.95 Ref. CW GDMM-CC Single-Ended Utility Insert for External Rough Grooving RE BW and Side Turning with a Front Chip Splitter Recommended Dimensions Tough 1 Hard Machining Data f face-groove IC830 IC354 IC808 IC907 Designation CW RE CWTOL(1) RETOL(2) BW (mm/rev) GDMM 7CC 7.00 0.80 0.050 0.050 6.00 • 0.30-0.45 GDMM 8CC 8.00 0.80 0.050 0.050 5.60 • • • 0.30-0.45 • For cutting speed recommendations, see pages 676-688 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: C#-GHDR/L (301) • GADR/L-8 (314) • GADR/L-JHP (315) • GAFG-R/L-8 (661) • GHDR/L (long pocket) (313) • GHDR/L-JHP (long pocket) (313) • GHFG-R/L-8 (659) • GHFGR/L-8 (659) • GHIR/L (W=7.0-8.3) (398) 664 ISCAR
