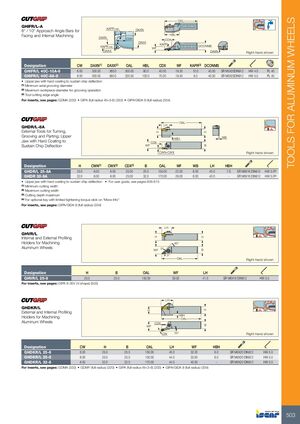

Токарные инструменты Iscar (часть 1) 2026 - страница 505

TOOLS FOR ALUMINUM WHEELS OAL GHIFR/L-A KAPR min 8° / 10° Approach Angle Bars for DAXN Facing and Internal Machining HBL DAXN CDX CDX DAXX KAPR KAPR min DCONMS WF DAXX DAXN Right-hand shown Designation CW DAXN(1) DAXX(2) OAL HBL CDX WF KAPR(3) DCONMS GHIFR/L 40C-10A-6 6.00 300.00 360.0 300.00 80.0 40.00 19.30 10.0 40.00 SR M5X20DIN912 HW 4.0 PL 40 GHIFR/L 40C-8A-8 8.00 300.00 360.0 320.00 100.0 70.00 19.50 8.0 40.00 SR M6X25DIN912 HW 5.0 PL 40 • Upper jaw with hard coating to sustain chip deflection (1) Minimum axial grooving diameter (2) Maximum workpiece diameter for grooving operation (3) Tool cutting edge angle For inserts, see pages: GDMA (332) • GIPA (full radius W=3-6) (333) • GIPA/GIDA 8 (full radius) (334) OAL LH GHDR/L-8A External Tools for Turning, H H Grooving and Parting; Upper WB HBH Jaw with Hard Coating to CDX Sustain Chip Deflection WF B CWN-CWX Right-hand shown Designation H CWN(1) CWX(2) CDX(3) B OAL WF WB LH HBH GHDR/L 25-8A 25.0 8.00 8.00 25.00 25.0 150.00 22.00 6.00 40.0 7.6 SR M6X16 DIN912 HW 5.0(a) GHDR 32-8A 32.0 8.00 8.00 25.00 32.0 170.00 29.00 6.00 40.0 - SR M6X16 DIN912 HW 5.0(a) • Upper jaw with hard coating to sustain chip deflection • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (a) For optional key with limited tightening torque click on “More Info” For inserts, see pages: GIPA/GIDA 8 (full radius) (334) LH GHVR/L H H Internal and External Profiling Holders for Machining 45° Aluminum Wheels WF 5° B 5° OAL Right-hand shown Designation H B OAL WF LH GHVR/L 25-8 25.0 25.0 150.00 29.00 41.0 SR M6X16 DIN912 HW 5.0 For inserts, see pages: GIPA 8-35V (V-shape) (505) LH GHDKR/L H H External and Internal Profiling HBH Holders for Machining OAL Aluminum Wheels CDX WF B CW 15° Right-hand shown Designation CW H B OAL LH WF HBH GHDKR/L 25-6 6.00 25.0 25.0 150.00 40.0 32.20 6.0 SR M6X20 DIN912 HW 5.0 GHDKR/L 25-8 8.00 25.0 25.0 150.00 44.0 33.00 6.0 SR M6X20 DIN912 HW 5.0 GHDKR/L 32-8 8.00 32.0 32.0 170.00 44.0 40.00 - SR M6X20 DIN912 HW 5.0 For inserts, see pages: GDMA (332) • GDMY (full radius) (320) • GIPA (full radius W=3-6) (333) • GIPA/GIDA 8 (full radius) (334) 503
