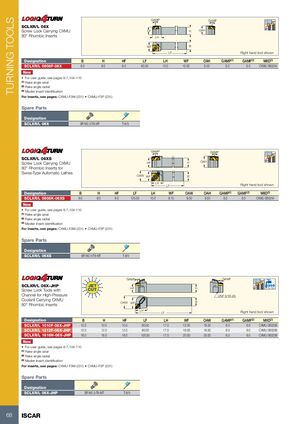

TURNING TOOLS GAMP GAMF 95º SCLXR/L 06X 95º Screw Lock Carrying CXMU HF H OAH 80° Rhombic Inserts LH WF B LF Right hand tool shown Designation B H HF LF LH WF OAH GAMP(1) GAMF(2) MIID(3) SCLXR/L 0808F-06X 8.0 8.0 8.0 80.00 10.0 10.00 9.50 6.0 6.0 CXMU 060204 New • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CXMU-F3M (231) • CXMU-F3P (231) Spare Parts Designation SCLXR/L 06X SR M2.5-T8-MT T-8/5 GAMP GAMF 95º SCLXR/L 06XS 95º OAH Screw Lock Carrying CXMU HF H 80° Rhombic Inserts for Swiss-Type Automatic Lathes OAW WF B LH LF Right hand tool shown Designation B H HF LF LH WF OAW OAH GAMP(1) GAMF(2) MIID(3) SCLXR/L 0808K-06XS 8.0 8.0 8.0 125.00 10.0 8.15 9.00 9.50 6.0 6.0 CXMU 060204 New • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CXMU-F3M (231) • CXMU-F3P (231) Spare Parts Designation SCLXR/L 06XS SR M2.5-T8-MT T-8/5 GAMP GAMF 95º SCLXR/L 06X-JHP HF H 95º Bar Max Screw Lock Tools with Channel for High-Pressure UNF 5/16-24 Coolant Carrying CXMU B OAW WF 80° Rhombic Inserts LH Right hand tool shown LF Designation B H HF LF LH WF OAW GAMP(1) GAMF(2) MIID(3) SCLXR/L 1010F-06X-JHP 10.0 10.0 10.0 80.00 17.0 12.00 18.50 6.0 6.0 CXMU 060208 SCLXR/L 1212F-06X-JHP 12.0 12.0 12.0 80.00 17.0 16.00 18.50 6.0 6.0 CXMU 060208 SCLXR/L 1616H-06X-JHP 16.0 16.0 16.0 100.00 17.0 20.00 20.00 6.0 6.0 CXMU 060208 New • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CXMU-F3M (231) • CXMU-F3P (231) Spare Parts Designation SCLXR/L 06X-JHP SR M2.5-T8-MT T-8/5 68 ISCAR
