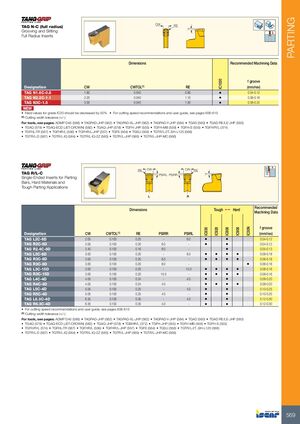

PARTING CW RE TAG N-C (full radius) 7º Grooving and Slitting Full Radius Inserts Dimensions Recommended Machining Data f groove IC1030 Designation CW CWTOL(1) RE (mm/rev) TAG N1.6C-0.8 1.60 0.040 0.80 • 0.04-0.12 TAG N2.2C-1.1 2.20 0.040 1.10 • 0.06-0.16 TAG N3C-1.5 3.00 0.040 1.50 • 0.08-0.22 NEW • Feed values for grade IC20 should be decreased by 50% • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) For tools, see pages: ADMP D45 (586) • TAGPAD-JHP (562) • TAGPAD-XL-JHP (562) • TAGPAD-Y-JHP (584) • TGAD (560) • TGAD RE/LE-JHP (560) • TGAQ (579) • TGAQ-ECD (JET-CROWN) (582) • TGAQ-JHP (578) • TGFH-JHP (555) • TGFH-MB (559) • TGFH-S (555) • TGFH/R/L (374) • TGFHL-TR (567) • TGFHR/L (556) • TGFHR/L-JHP (557) • TGFS (564) • TGSU (558) • TGTR/L-2T..SH-L120 (566) • TGTR/L-D (567) • TGTR/L-IQ (564) • TGTR/L-IQ-2Z (565) • TGTR/L-JHP (565) • TGTR/L-JHP-MC (566) RE CW CW RE TAG R/L-C PSIRL PSIRR 7º Single-Ended Inserts for Parting Bars, Hard Materials and Tough Parting Applications L R Recommended Dimensions Tough 1 Hard Machining Data f groove IC30N IC830 IC928 IC808 IC908 Designation CW CWTOL(1) RE PSIRR PSIRL (mm/rev) TAG L2C-6D 2.05 0.100 0.20 - 6.0 • • 0.04-0.12 TAG R2C-6D 2.05 0.100 0.20 6.0 - • • 0.04-0.12 TAG R2.4C-8D 2.40 0.100 0.16 8.0 - • 0.05-0.13 TAG L3C-6D 3.00 0.100 0.20 - 6.0 • • • • 0.08-0.18 TAG R3C-6D 3.00 0.100 0.20 6.0 - • • • • 0.08-0.18 TAG R3C-8D 3.00 0.100 0.20 8.0 - • 0.06-0.16 TAG L3C-15D 3.00 0.100 0.20 - 15.0 • • • • 0.08-0.16 TAG R3C-15D 3.00 0.100 0.20 15.0 - • • • • 0.08-0.16 TAG L4C-4D 4.05 0.100 0.24 - 4.0 • • 0.08-0.20 TAG R4C-4D 4.05 0.100 0.24 4.0 - • • • • 0.08-0.20 TAG L5C-4D 5.05 0.100 0.25 - 4.0 • • 0.10-0.25 TAG R5C-4D 5.05 0.100 0.25 4.0 - • • 0.10-0.25 TAG L6.3C-4D 6.35 0.100 0.35 - 4.0 • • 0.12-0.30 TAG R6.3C-4D 6.35 0.100 0.35 4.0 - • • 0.12-0.30 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) For tools, see pages: ADMP D45 (586) • TAGPAD-JHP (562) • TAGPAD-XL-JHP (562) • TAGPAD-Y-JHP (584) • TGAD (560) • TGAD RE/LE-JHP (560) • TGAQ (579) • TGAQ-ECD (JET-CROWN) (582) • TGAQ-JHP (578) • TGBHR/L (372) • TGFH-JHP (555) • TGFH-MB (559) • TGFH-S (555) • TGFH/R/L (374) • TGFHL-TR (567) • TGFHR/L (556) • TGFHR/L-JHP (557) • TGFS (564) • TGSU (558) • TGTR/L-2T..SH-L120 (566) • TGTR/L-D (567) • TGTR/L-IQ (564) • TGTR/L-IQ-2Z (565) • TGTR/L-JHP (565) • TGTR/L-JHP-MC (566) 569
