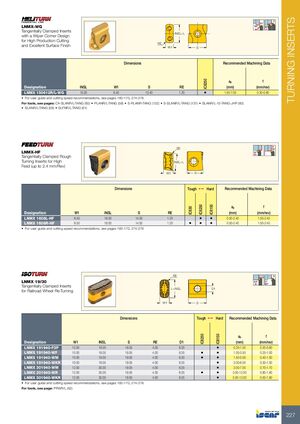

TURNING INSERTS 91° LNMX-WG 93° 93º Tangentially Clamped Inserts INSL=L with a Wiper Corner Design for High Production Cutting RE and Excellent Surface Finish W1 S Dimensions Recommended Machining Data ap f IC8250 Designation INSL W1 S RE (mm) (mm/rev) LNMX 150612R/L-WG 15.00 6.40 13.40 1.20 • 1.50-7.00 0.30-0.80 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-SLANR/L-TANG (60) • PLANR/L-TANG (58) • S-PLANR-TANG (132) • S-SLANR/L-TANG (131) • SLANR/L-15-TANG-JHP (60) • SLANR/L-TANG (59) • SLFNR/L-TANG (61) RE 78° LNMX-HF 12° Tangentially Clamped Rough Turning Inserts for High INSL=L Feed (up to 2.4 mm/Rev) W1 S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC830 Designation W1 INSL S RE (mm) (mm/rev) LNMX 1608L-HF 8.50 16.00 14.00 1.20 • • 0.50-2.40 1.50-2.40 LNMX 1608R-HF 8.50 16.00 14.00 1.20 • • • 0.50-2.40 1.50-2.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 RE LNMX 19/30 84º 93º Tangentially Clamped Inserts L=INSL D1 for Railroad Wheel Re-Turning W1 S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 Designation W1 INSL S RE D1 (mm) (mm/rev) LNMX 191940-F3P 10.00 19.05 19.05 4.00 6.35 • 0.20-1.50 0.20-0.60 LNMX 191940-WF 10.00 19.05 19.05 4.00 6.35 • • 1.00-3.50 0.25-1.00 LNMX 191940-WM 10.00 19.05 19.05 4.00 6.35 • • 1.50-5.00 0.40-1.50 LNMX 191940-WKR 10.00 19.05 19.05 4.00 6.35 • 3.00-6.00 0.30-1.50 LNMX 301940-WM 12.00 30.00 19.05 4.00 6.35 • 3.00-7.00 0.70-1.70 LNMX 301940-WR 12.00 30.00 19.05 4.00 6.35 • • 3.00-12.00 0.80-1.90 LNMX 301940-WKR 12.00 30.00 19.05 4.00 6.35 • 5.00-12.00 0.50-1.90 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see page: PRWR/L (62) 227
