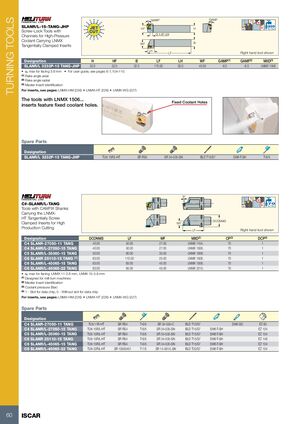

Токарные инструменты Iscar (часть 1) 2026 - страница 62

TURNING TOOLS GAMP GAMF SLANR/L-15-TANG-JHP HF H 93º Bar Max Screw-Lock Tools with G 1/8"-28 Channels for High-Pressure Coolant Carrying LNMX B WF Tangentially Clamped Inserts LH LF Right hand tool shown Designation H HF B LF LH WF GAMP(1) GAMF(2) MIID(3) SLANR/L 3232P-15 TANG-JHP 32.0 32.0 32.0 170.00 30.0 40.00 -6.0 -6.0 LNMX 1506 • ap max for facing 3.8 mm • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: LNMX-HM (226) • LNMX-HT (226) • LNMX-WG (227) The tools with LNMX 1506... Fixed Coolant Holes inserts feature fixed coolant holes. Spare Parts Designation SLANR/L 3232P-15 TANG-JHP TLN 15R/L-HT SR RS4 SR 34-535-SN BLD T15/S7 SW6-T-SH T-6/5 6° C#-SLANR/L-TANG 93º 70 Bar Max Tools with CAMFIX Shanks Carrying the LNMX- HT Tangentially Screw DCONMS Clamped Inserts for High WF Production Cutting LF Right hand tool shown Designation DCONMS LF WF MIID(2) CP(3) DCP(4) C4 SLANR-27050-11 TANG 40.00 50.00 27.00 LNMX 1104.. 70 1 C4 SLANR/L-27050-15 TANG 40.00 50.00 27.00 LNMX 1506.. 70 1 C5 SLANR/L-35060-15 TANG 50.00 60.00 35.00 LNMX 1506.. 70 1 C6 SLANR 25110-15 TANG (1) 63.00 110.00 25.00 LNMX 1506.. 70 1 C6 SLANR/L-45065-15 TANG 63.00 65.00 45.00 LNMX 1506.. 70 1 C6 SLANR/L-45065-22 TANG 63.00 65.00 45.00 LNMX 2210.. 70 1 • ap max for facing: LNMX 11-2.8 mm, LNMX 15-3.8 mm (1) Designed for mill-turn machines (2) Master insert identification (3) Coolant pressure (Bar) (4) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: LNMX-HM (226) • LNMX-HT (226) • LNMX-WG (227) Spare Parts Designation C4 SLANR-27050-11 TANG TLN 11R-HT SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD EZ 83 C4 SLANR/L-27050-15 TANG TLN 15R/L-HT SR RS4 T-6/5 SR 34-535-SN BLD T15/S7 SW6-T-SH EZ 104 C5 SLANR/L-35060-15 TANG TLN 15R/L-HT SR RS4 T-6/5 SR 34-535-SN BLD T15/S7 SW6-T-SH EZ 104 C6 SLANR 25110-15 TANG TLN 15R/L-HT SR RS4 T-6/5 SR 34-535-SN BLD T15/S7 SW6-T-SH EZ 146 C6 SLANR/L-45065-15 TANG TLN 15R/L-HT SR RS4 T-6/5 SR 34-535-SN BLD T15/S7 SW6-T-SH EZ 104 C6 SLANR/L-45065-22 TANG TLN 22R/L-HT SR 10500401 T-7/5 SR 14-591/L-SN BLD T20/S7 SW6-T-SH EZ 104 60 ISCAR
