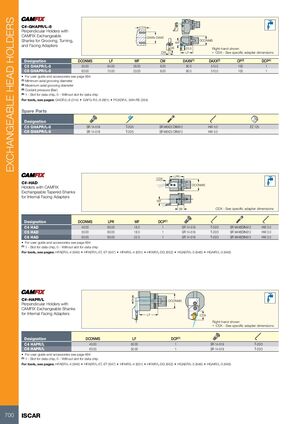

EXCHANGEABLE HEAD HOLDERS C#-GHAPR/L-8 CDX Perpendicular Holders with CAMFIX Exchangeable DAXN-DAXX Shanks for Grooving, Turning, WF DCONMS and Facing Adapters 26 25.5 Right-hand shown CW LF • CDX - See specific adapter dimensions Designation DCONMS LF WF CW DAXN(1) DAXX(2) CP(3) DCP(4) C5 GHAPR/L-8 50.00 64.00 26.00 8.00 80.0 510.0 100 1 C6 GHAPR/L-8 63.00 75.00 33.00 8.00 80.0 510.0 100 1 • For user guide and accessories see page 694 (1) Minimum axial grooving diameter (2) Maximum axial grooving diameter (3) Coolant pressure (Bar) (4) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: GADR/L-8 (314) • GAFG-R/L-8 (661) • PCADR/L 34N-RE (354) Spare Parts Designation C5 GHAPR/L-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 EZ 125 C6 GHAPR/L-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 LPR CDX C#-HAD DCONMS Holders with CAMFIX Exchangeable Tapered Shanks for Internal Facing Adapters WF 26 CDX - See specific adapter dimensions Designation DCONMS LPR WF DCP(1) C4 HAD 40.00 60.00 18.0 1 SR 14-519 T-20/3 SR M4X6DIN912 HW 3.0 C5 HAD 50.00 60.00 18.0 1 SR 14-519 T-20/3 SR M4X6DIN912 HW 3.0 C6 HAD 63.00 60.00 22.0 1 SR 14-519 T-20/3 SR M4X6DIN912 HW 3.0 • For user guide and accessories see page 694 (1) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HGAER/L-3 (646) • HGAIR/L-3 (648) C#-HAPR/L 8 DCONMS Perpendicular Holders with CAMFIX Exchangeable Shanks for Internal Facing Adapters LF CDX Right-hand shown • CDX - See specific adapter dimensions Designation DCONMS LF DCP(1) C4 HAPR/L 40.00 50.00 1 SR 14-519 T-20/3 C6 HAPR/L 63.00 50.00 1 SR 14-519 T-20/3 • For user guide and accessories see page 694 (1) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HGAER/L-3 (646) • HGAIR/L-3 (648) 700 ISCAR
