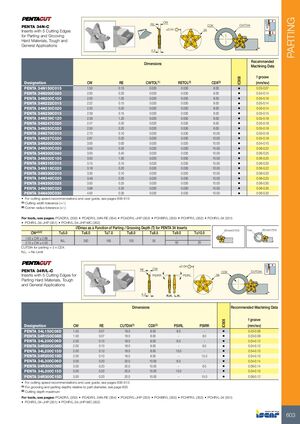

PARTING CW RE CDX CUTDIA PENTA 34N-C ±0.04 34 Inserts with 5 Cutting Edges for Parting and Grooving Hard Materials, Tough and General Applications 4.3 Recommended Dimensions Machining Data f groove IC908 Designation CW RE CWTOL(1) RETOL(2) CDX(3) (mm/rev) PENTA 34N150C015 1.50 0.15 0.020 0.030 8.00 • 0.03-0.07 PENTA 34N200C020 2.00 0.20 0.020 0.030 8.00 • 0.04-0.14 PENTA 34N200C100 2.00 1.00 0.020 0.050 8.00 • 0.05-0.16 PENTA 34N222C015 2.22 0.15 0.020 0.030 8.00 • 0.05-0.14 PENTA 34N230C020 2.30 0.20 0.020 0.030 8.00 • 0.05-0.14 PENTA 34N239C015 2.39 0.15 0.020 0.030 8.00 • 0.05-0.15 PENTA 34N239C120 2.39 1.20 0.020 0.050 8.00 • 0.05-0.18 PENTA 34N247C020 2.47 0.20 0.020 0.030 8.00 • 0.05-0.18 PENTA 34N250C020 2.50 0.20 0.020 0.030 8.00 • 0.05-0.18 PENTA 34N270C010 2.70 0.10 0.020 0.030 10.00 • 0.05-0.18 PENTA 34N287C020 2.87 0.20 0.020 0.030 10.00 • 0.05-0.18 PENTA 34N300C000 3.00 0.00 0.020 0.020 10.00 • 0.04-0.10 PENTA 34N300C020 3.00 0.20 0.020 0.030 10.00 • 0.06-0.22 PENTA 34N300C040 3.00 0.40 0.020 0.030 10.00 • 0.06-0.25 PENTA 34N300C150 3.00 1.50 0.020 0.050 10.00 • 0.06-0.20 PENTA 34N315C015 3.15 0.15 0.020 0.030 10.00 • 0.06-0.20 PENTA 34N318C020 3.18 0.20 0.020 0.030 10.00 • 0.06-0.22 PENTA 34N330C010 3.30 0.10 0.020 0.020 10.00 • 0.06-0.20 PENTA 34N348C020 3.48 0.20 0.020 0.030 10.00 • 0.06-0.25 PENTA 34N350C025 3.50 0.25 0.020 0.030 10.00 • 0.06-0.30 PENTA 34N398C020 3.98 0.20 0.020 0.030 10.00 • 0.06-0.30 PENTA 34N400C030 4.00 0.30 0.020 0.030 10.00 • 0.06-0.30 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: PCADR/L (353) • PCADR/L 34N-RE (354) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-34 (351) • PCHR/L-34-JHP (351) • PCHR/L-34-JHP-MC (352) ØDmax as a Function of Parting / Grooving Depth (T) for PENTA 34 Inserts ØDmax(CUTDIA) Tmax ØDmax(CUTDIA) CW±0.02 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤8.5 T≤9.0 T≤10.0 1�50 ≤ CW ≤ 2�69 - - N�L� 350 165 100 55 55 20 2�70 ≤ CW ≤ 4�00 CUTDIA for parting = 2 x CDX N�L� = No Limit ±0.04 RE CW PENTA 34R/L-C CDX CUTDIA Inserts with 5 Cutting Edges for PSIRR PSIRL 34 Parting Hard Materials, Tough and General Applications 4.3 R.H. L.H. Dimensions Recommended Machining Data f groove IC908 Designation CW RE CUTDIA(1) CDX(2) PSIRL PSIRR (mm/rev) PENTA 34L150C08D 1.50 0.07 18.0 8.00 8.0 - • 0.03-0.08 PENTA 34R150C08D 1.50 0.07 18.0 8.00 - 8.0 • 0.03-0.08 PENTA 34L200C06D 2.00 0.10 18.0 8.00 6.0 - • 0.04-0.12 PENTA 34R200C06D 2.00 0.10 18.0 8.00 - 6.0 • 0.04-0.12 PENTA 34L200C15D 2.00 0.10 18.0 8.00 15.0 - • 0.04-0.10 PENTA 34R200C15D 2.00 0.10 18.0 8.00 - 15.0 • 0.04-0.10 PENTA 34L300C06D 3.00 0.20 20.0 10.00 6.0 - • 0.04-0.14 PENTA 34R300C06D 3.00 0.20 20.0 10.00 - 6.0 • 0.06-0.14 PENTA 34L300C15D 3.00 0.20 20.0 10.00 15.0 - • 0.04-0.10 PENTA 34R300C15D 3.00 0.20 20.0 10.00 - 15.0 • 0.06-0.12 • For cutting speed recommendations and user guide, see pages 606-615 (1) For grooving and parting depths relative to part diameter, see page 603 (2) Cutting depth maximum For tools, see pages: PCADR/L (353) • PCADR/L 34N-RE (354) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-34 (351) • PCHR/L-34-JHP (351) • PCHR/L-34-JHP-MC (352) 603
