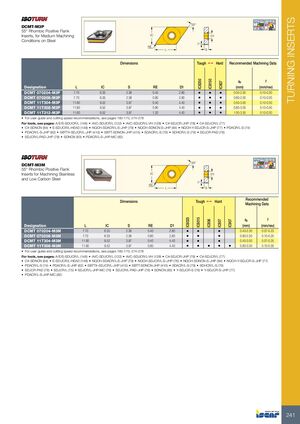

TURNING INSERTS 93º-95º 55° 107.5° DCMT-M3P 30º MAX 16º 55° Rhombic Positive Flank MAX Inserts, for Medium Machining IC D1 Conditions on Steel 7° RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC807 Designation L IC S RE D1 (mm) (mm/rev) DCMT 070204-M3P 7.70 6.35 2.38 0.40 2.80 • • • 0.50-2.50 0.10-0.30 DCMT 070208-M3P 7.70 6.35 2.38 0.80 2.80 • • • 0.80-2.50 0.10-0.30 DCMT 11T304-M3P 11.60 9.52 3.97 0.40 4.40 • • • 0.50-3.00 0.10-0.30 DCMT 11T308-M3P 11.60 9.52 3.97 0.80 4.40 • • • 0.80-3.00 0.10-0.30 DCMT 11T312-M3P 11.60 9.52 3.97 1.20 4.40 • • • 1.00-3.50 0.10-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SDUCR/L (148) • AVC-SDUCR/L (122) • AVC-SDUCR/L-VH (128) • C#-SDJCR-JHP (78) • C#-SDJCR/L (77) • C#-SDNCN (84) • E-SDUCR/L-HEAD (148) • NQCH-SDACR/L-S-JHP (79) • NQCH-SDNCN-S-JHP (84) • NQCH-Y-SDJCR-S-JHP (77) • PDACR/L-S (74) • PDACR/L-S-JHP (82) • SBTT#-SDJCR/L-JHP (415) • SBTT-SDNCN-JHP (415) • SDACR/L-S (79) • SDHCR/L-S (79) • SDJCR-PAD (78) • SDJCR/L-PAD-JHP (78) • SDNCN (83) • PDACR/L-S-JHP-MC (82) 93º-95º 55° 107.5° DCMT-M3M 30º MAX 16º 55° Rhombic Positive Flank MAX Inserts for Machining Stainless IC D1 and Low Carbon Steel 7° RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 IC806 IC807 IC907 Designation L IC S RE D1 (mm) (mm/rev) DCMT 070204-M3M 7.70 6.35 2.38 0.40 2.80 • • • 0.40-2.50 0.07-0.23 DCMT 070208-M3M 7.70 6.35 2.38 0.80 2.80 • • • 0.80-2.50 0.10-0.25 DCMT 11T304-M3M 11.60 9.52 3.97 0.40 4.40 • • • 0.40-3.00 0.07-0.25 DCMT 11T308-M3M 11.60 9.52 3.97 0.80 4.40 • • • • • 0.80-3.00 0.10-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E/S-SDUCR/L (148) • AVC-SDUCR/L (122) • AVC-SDUCR/L-VH (128) • C#-SDJCR-JHP (78) • C#-SDJCR/L (77) • C#-SDNCN (84) • E-SDUCR/L-HEAD (148) • NQCH-SDACR/L-S-JHP (79) • NQCH-SDJCR/L-S-JHP (76) • NQCH-SDNCN-S-JHP (84) • NQCH-Y-SDJCR-S-JHP (77) • PDACR/L-S (74) • PDACR/L-S-JHP (82) • SBTT#-SDJCR/L-JHP (415) • SBTT-SDNCN-JHP (415) • SDACR/L-S (79) • SDHCR/L-S (79) • SDJCR-PAD (78) • SDJCR/L (75) • SDJCR/L-JHP-MC (76) • SDJCR/L-PAD-JHP (78) • SDNCN (83) • Y-SDJCR-S (76) • Y-SDJCR-S-JHP (77) • PDACR/L-S-JHP-MC (82) 241
