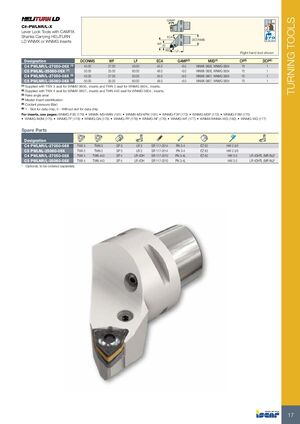

TURNING TOOLS GAMP 95° C#-PWLNR/L-X 95° Lever Lock Tools with CAMFIX Shanks Carrying HELITURN ECA 70 DCONMS LD WNMX or WNMG Inserts Bar Max WF 20 95° LF Right hand tool shown Designation DCONMS WF LF ECA GAMP(3) MIID(4) CP(5) DCP(6) C4 PWLNR/L-27050-06X (1) 40.00 27.00 50.00 45.0 -6.0 WNMX 0606, WNMG 0604 70 1 C5 PWLNL-25060-06X (1) 50.00 25.00 60.00 48.0 -6.0 WNMX 0606, WNMG 0604 70 1 C4 PWLNR/L-27050-08X (2) 40.00 27.00 50.00 45.0 -6.0 WNMX 0807, WNMG 0804 70 1 C5 PWLNR/L-35060-08X (2) 50.00 35.00 60.00 48.0 -6.0 WNMX 0807, WNMG 0804 70 1 (1) Supplied with TWX 3 seat for WNMX 0606.. inserts and TWN 3 seat for WNMG 0604.. inserts. (2) Supplied with TWX 4 seat for WNMX 0807.. inserts and TWN 443 seat for WNMG 0804.. inserts. (3) Rake angle axial (4) Master insert identification (5) Coolant pressure (Bar) (6) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: WNMG-F3S (176) • WNMX-M3/4MW (181) • WNMX-M3/4PW (181) • WNMG-F3P (172) • WNMG-M3P (173) • WNMG-F3M (175) • WNMG-M3M (175) • WNMG-TF (178) • WNMG-GN (179) • WNMG-PP (178) • WNMG-NF (176) • WNMG-WF (177) • WNMA/WNMA-WG (180) • WNMG-WG (177) Spare Parts Designation C4 PWLNR/L-27050-06X TWX 3 TWN 3 SP 3 LR 3 SR 117-2014 PN 3-4 EZ 62 HW 2.5/5 C5 PWLNL-25060-06X TWX 3 TWN 3 SP 3 LR 3 SR 117-2014 PN 3-4 EZ 83 HW 2.5/5 C4 PWLNR/L-27050-08X TWX 4 TWN 443 SP 4 LR 4DH SR 117-2010 PN 3-4L EZ 62 HW 3.0 LR 4DHTL (MR INJ)* C5 PWLNR/L-35060-08X TWX 4 TWN 443 SP 4 LR 4DH SR 117-2010 PN 3-4L HW 3.0 LR 4DHTL (MR INJ)* * Optional, to be ordered separately 17
